Battery Capacity Tester
Battery Capacity Test Machine 4 Channels Charge and Discharge Battery Checker Car Battery Load Tester
Specifications:
HT-BCT50A4C Battery Charge and Discharge Tester
(For more specifications, please contact us. )
Product Information
| Brand Name: | Heltec Energy |
| Origin: | Mainland China |
| Warranty: | One year |
| MOQ: | 1 pc |
| Number of channels | 4 channels |
| Charging range | 0.3-5V/0.5-50AAdj |
| Discharge range | 0.3-5V/0.5-50AAdj |
| Work step | Charge/Discharge/Rest/Cycle |
| Power | AC200-240V 50/60HZ (If you need 110V,please inform us in advance) |
| Size and weight | Product Size 620*105*230mm,Weight 7Kg |

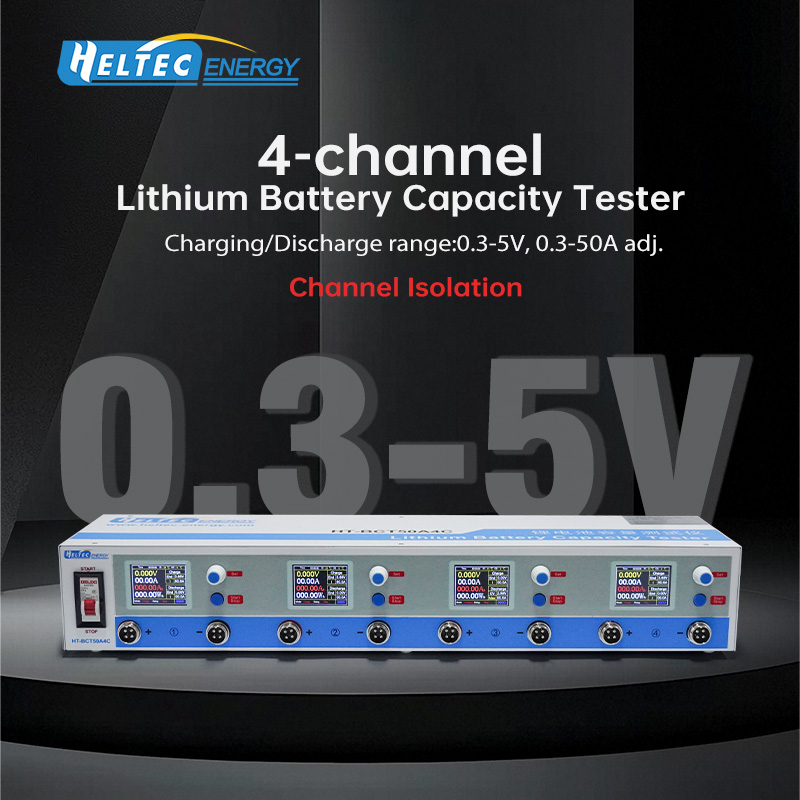

4 Channels Lithium Battery Charge and Discharge Capacity Tester

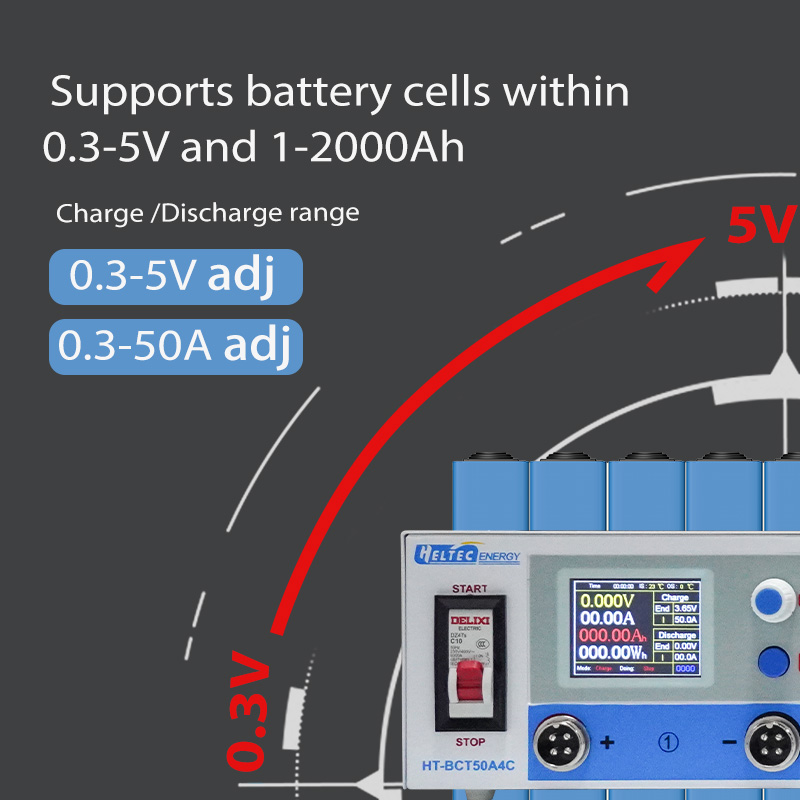

Charge/Discharge Voltage Range: 0.3-5V
Charge/Discharge Current Range: 0.3-50A

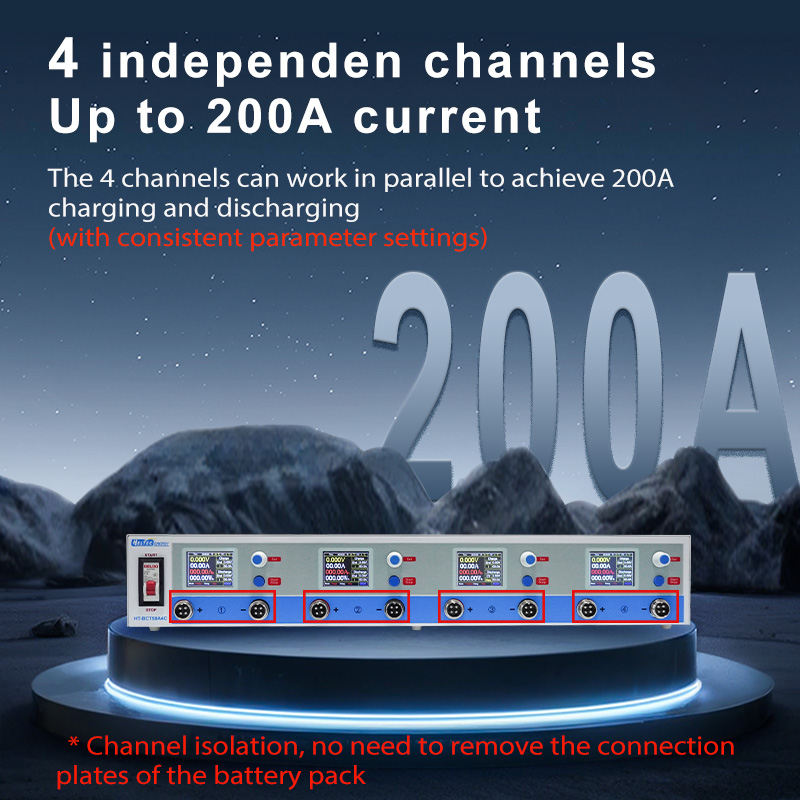

4 channels can work in parallel to achieve 200A charging and discharging (with consistent parameter settings)
Channel isolation, no need to remove the connection piece of the battery pack

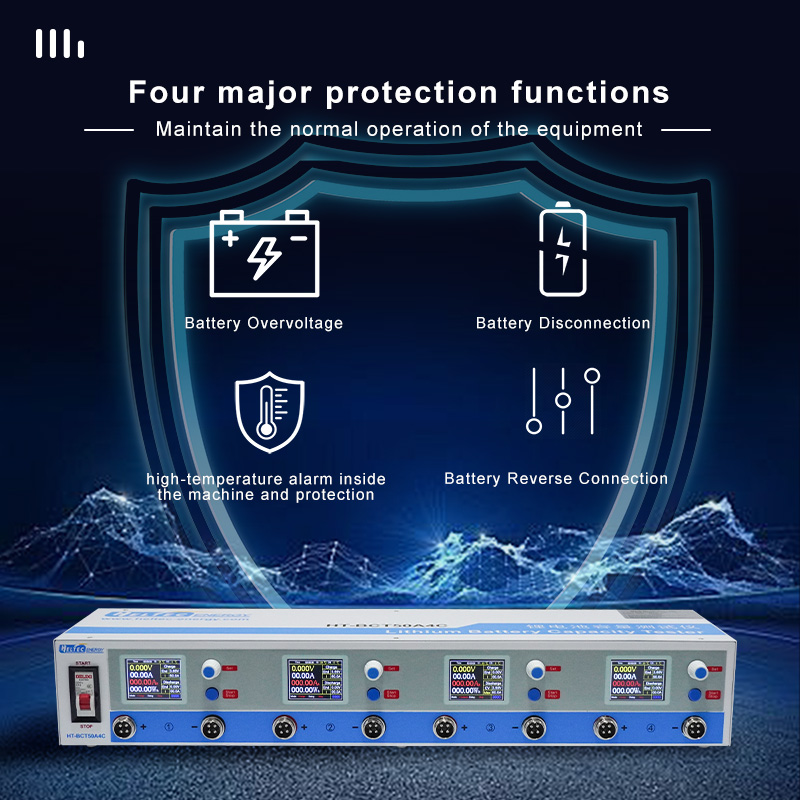

Protection Functions
Battery Overvoltage
Battery Disconnection
Battery disconnect protection
High temperature alarm and protection inside the machine
Customization
- Customized logo
- Customized packaging
- Graphic customization

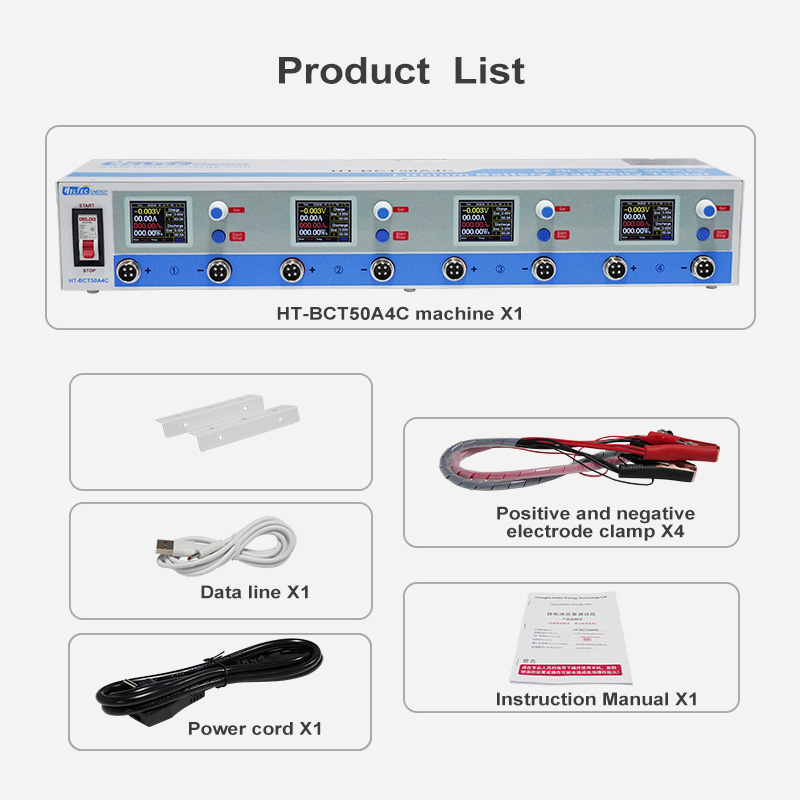

Package
1. Battery charge discharge capacity tester *1 set
2. Power line *1 set
3. Battery fixture *4 set
4. Anti-static sponge, carton box.
Purchase Details
- Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details - Payment: TT is recommended
- Returns & Refunds: Eligible for returns and refunds

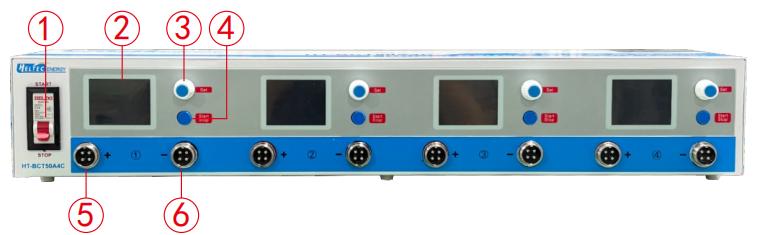

Appearance introduction：
① Power switch:If the power is suddenly cut off during the test,the test data will not be saved
② Display screens:Display charging and discharging parameters and discharge curve
③ Coding switches:Rotate to adjust working mode, press to set parameters
④ Start/Stop button: any operation in running state must be paused first
⑤ Battery positive input:1-2-3 pin through current, 4 pin voltage detection
⑥ Battery negative input:1-2-3 pin through current, 4 pin voltage detection
Product parameters：
| Model | HT-BCT50A4C, 4 Channels are isolated from each other and work independently |
| Charging range | 0.3-5V/0.5-50AAdj |
| Discharge range | 0.3-5V/0.5-50AAdj |
| Work step | Charge/Discharge/Rest/Cycle |
| Communication | USB,WIN XP or above systems,Chinese or English |
| Extended function | 4 channels can work in parallel,achieving 200A charging and discharging (with consistent parameter settings), channel is olation,and no need to disassemble the connecting pieces between battery cells |
| Auxiliary functions | Voltage balancing(CV Discharge) |
| Protective function | Battery overvoltage/Battery reverse connection/Battery disconnection/Fan not running |
| Calibration equipment | Standard source(V:Fluke 8845A,A:Gwinstek PCS-10001) |
| Accuracy | V±0.1%,A±0.1%,The accuracy is valid for one year from the date of purchase |
| Cooling | Cooling fans open at 40°C,protected at 83°℃ (please check and maintain the fans regularly) |
| Working environment | 0-40°℃,air circulation,do not allow heat to accumulate around the machine |
| Warning | During battery testing,someone must be present to supervise |
| Power | AC200-240V 50/60HZ (If you need 110V,please inform us in advance) |
| Size and weight | Product Size 620*105*230mm,Weight 7Kg |
Use method：

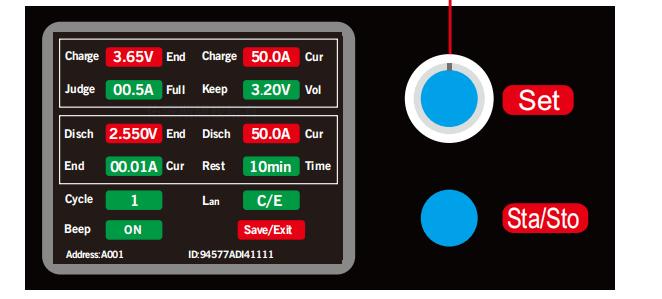

1. Start up first, and then clip the battery. Press the setting knob to enter the setting page, rotate left and right to adjust the parameters, press to determine, Set the parameters correctly and save the exit.
Parameters to be set in charging mode:
Charging End voltage: lithium titanate 2.7-2.8V, 18650/ternary/polymer 4.1-4.2V,
lithium iron phosphate 3.6-3.65V (You must set this parameter correctly and reasonably).
Charging current: set to 10-20% of the cell capacity (Please set it correctly and reasonably). It is recommended to set a current that makes the cell heat less as much as possible.
Judging full current: When constant current charging is switched to constant voltage charging, and the charging current decreases to this value, it is judged as fully charged and set to 0.2-1A by default.
Parameters to be set in discharge mode:
Discharge End voltage: lithium titanate 1.6-1.7V, 18650/ternary/polymer 2.75-2.8V,
lithium iron phosphate 2.4-2.5V (You must set this parameter correctly and reasonably).
Discharge current: set to 10-50% of the cell capacity (Please set it correctly and reasonably). It is recommended to set a current that makes the cell heat less as much as possible.
Parameters to be set in cycle mode:
Charge and discharge mode parameters need to be set simultaneously
Keep voltage: The cut-off voltage of the last charge in cyclic mode ,can be the same as the cut-off voltage of the charge or discharge.
Resting time: In cycle mode, after the battery is fully filled or discharged (let the battery cool down for a period of time), usually set for 5 minutes.
Cycle: Max 5 times, 1 time (charge-discharge-charge), 2 times ( charge - discharge - charge - discharge - charge ) , 3 times (charge - discharge - charge -discharge - charge - discharge - charge )
Parameters to be set in Voltage balancing mode:
Discharge End voltage: How many volts do you plan to balance the cell voltage to? This value must be higher than 10mv than the battery voltage.
Discharge current setting reference: It is recommended to set it to 0.5-10A, the smaller the cell capacity or voltage difference, the smaller the current setting.
End current: It is recommended to set it to 0.01A

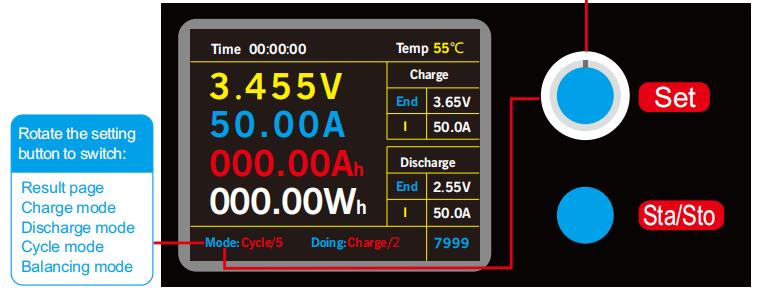

2. Return to the home page, rotate the setting button to the left or right to switch to the working mode you need, press the start / stop button to enter the working state, and press again to pause.
3. After waiting for the test to end, the result page will automatically pop up (press any button to stop the alarm sound) and record it manually. Test the results, and then test the next battery.

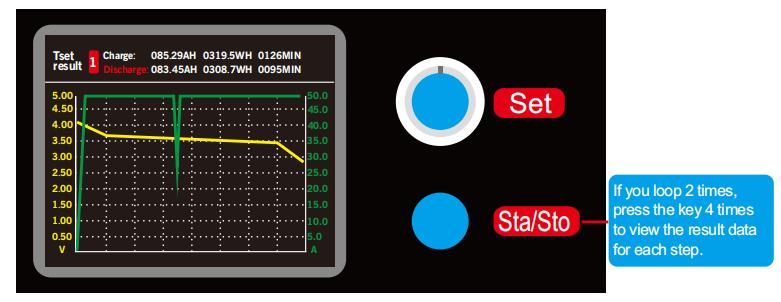

Test results: 1 indicates the first cycle, the AH/WH/min of charge and discharge respectively.
Press the start / stop button further to show the results and curve of each step in turn.
The yellow numbers represent the voltage axis, and the yellow curve represents the voltage curve.
Green numbers represent the current axis, green numbers represent the current curve.
When the battery performance is good, the voltage and current should be a relatively smooth curve. When the voltage and current curve rises and falls sharply, it may be that there is a pause during the test or the charging and discharging current is too large. Or the internal resistance of the battery is too large and it is close to being scrapped.
If the test result is empty, the working step is less than 2 minutes, so the data will not be recorded.

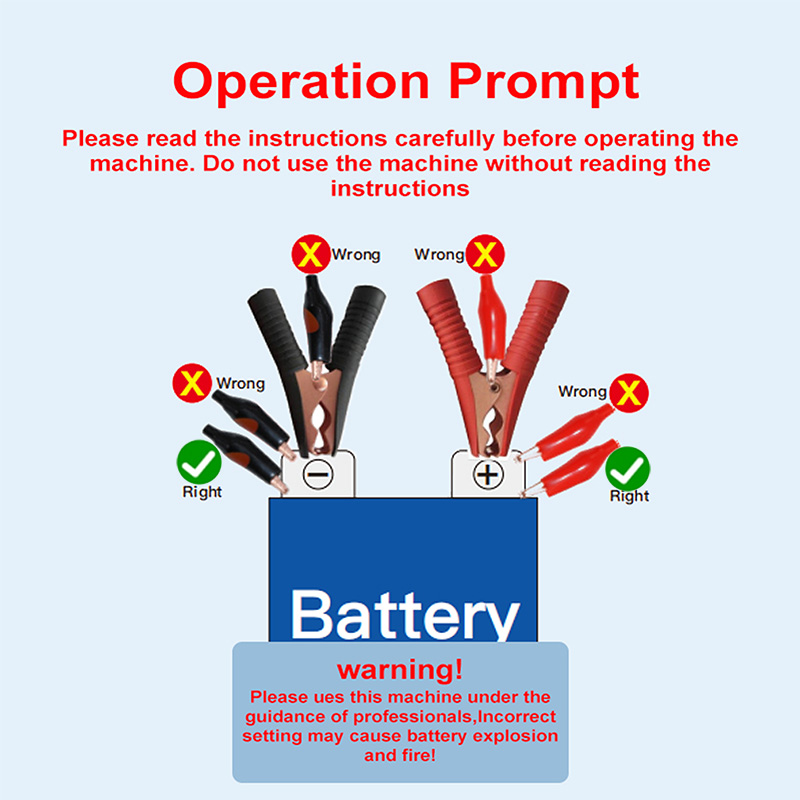

1. Both the large and small crocodile clamps must be clamped on the battery pole lugs!
2. The contact area between the large crocodile clip and the pole ear should be large enough, and it is prohibited to clip it onto screws/nickel plates/wires, otherwise it will cause abnormal interruption of the testing process！
3. The small crocodile clip must be clamped at the bottom of the battery ear, otherwise it may cause inaccurate capacity testing!
