Introduction:

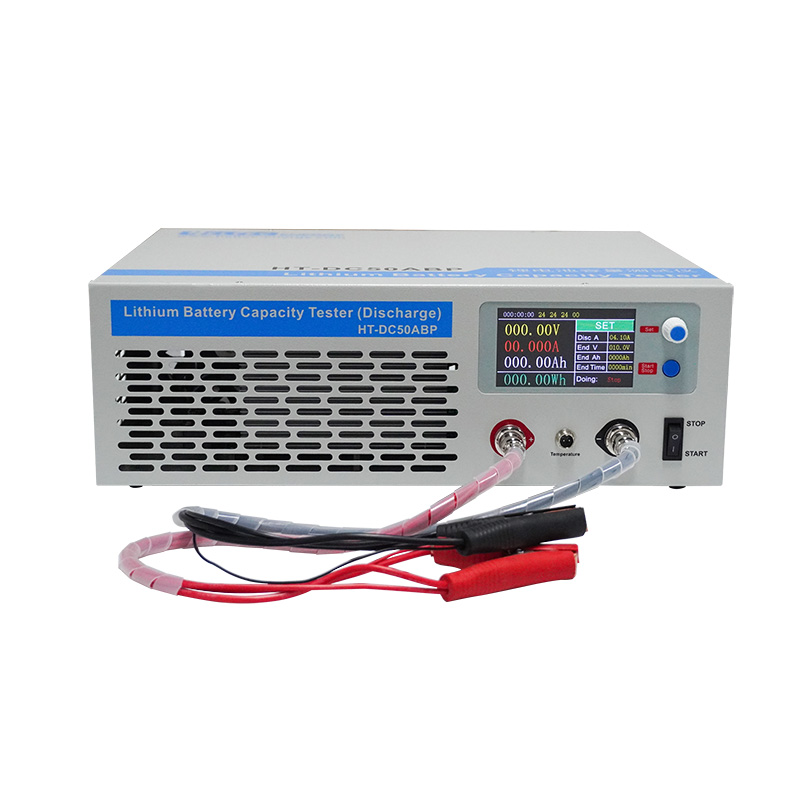

Heltec Energy has recently launched a cost-effective battery capacity discharge tester - HT-DC50ABP. With its excellent performance and rich features, this battery capacity discharge tester brings a solution to the field of battery testing.
HT-DC50ABP has a wide range of adaptability and is perfectly compatible with various types of batteries ranging from 5-120V. Whether it is a small low-voltage battery or a large high-voltage battery pack, the battery capacity discharge tester can be accurately tested. This feature makes its application scenarios extremely wide, covering multiple fields from 3C products to energy storage systems, meeting the needs of different industries for battery testing.
The Battery capacity discharge tester testing range
The battery capacity discharge tester performs well in adjusting testing parameters. The voltage regulation range is 5-120V, the current regulation range is 1-50A, and the adjustment step size is precise to 0.1V and 0.1A, which can accurately match the discharge requirements of different batteries. At the same time, the measurement accuracy of the battery capacity discharge tester is extremely high, with a voltage accuracy of ± 0.1% and a current accuracy of ± 0.2%. This accuracy is valid for one year after purchase, providing users with reliable data protection.
The Battery capacity discharge tester discharge modes
The Battery capacity discharge tester has three intelligent discharge modes: constant voltage discharge, timed discharge, and fixed capacity discharge. The constant voltage discharge mode can simulate the discharge process of a battery at a specific voltage, helping companies test the performance of the battery in a stable voltage environment; The timed discharge mode allows users to complete tests within a specified time, improving testing efficiency; The fixed capacity discharge mode is used to calibrate the battery capacity and ensure the accuracy of the actual battery capacity. These modes work together to meet diverse testing scenario requirements.


In terms of safety and stability, HT-DC50ABP performs excellently. This battery capacity discharge tester has four main protection functions, which can effectively deal with abnormal situations such as battery overvoltage, overcurrent, reverse connection, and high temperature. When the battery is overvoltage or overcurrent, the tester will quickly cut off the circuit to prevent battery damage; When the battery is reversed, the device automatically protects to avoid faults; The internal high temperature alarm and protection mechanism, combined with forced air cooling and a 2-minute delayed operation heat dissipation method, ensures the stability of the equipment under long-term high load operation.
The ease of operation is also a major highlight of this battery capacity discharge tester. The user interface design is user-friendly, and the encoding switch is easy to operate. Pressing it will enter the settings page, and rotating it will adjust the parameters. After powering on and connecting the battery, users can choose between quick settings or custom settings. Quick settings suitable for common battery types, the system automatically calculates discharge parameters; Custom settings meet the precise setting requirements of users for special batteries. During the testing process, the display screen displays key information such as battery voltage, running time, machine temperature, and set current in real time. After the test is completed, a detailed test result page will automatically pop up, including discharge capacity, energy consumption, discharge time, and voltage current curves, making it convenient for users to analyze and evaluate.
The Heltec HT-DC50ABP battery capacity discharge tester provides a more efficient, accurate, and safe solution for battery testing, promoting further development of the battery industry in research and development, production, and quality inspection. If you want to learn more about the product's related information and parameters, you can click on the product details page or contact us. Of course, we also have other battery capacity testers to choose from. What are you hesitating about? Hurry up and take action!
