24S Lithium Battery Maintenance Equalizer Car Battery Restoration Machine

The 24S Lithium Battery Maintenance Equalizer uses the latest large-scaleand high-speed MCU chips from Microchip Technology Inc,in the United States to precisely detect various units of lithium battery packs in real-time.The chip can store,process,and compare the collected voltage data,and then display the results on the screen.This lithium battery maintenance equalizer can simultaneously detect the voltage situation of up to 24 strings lithium batteries,automatically analyze and compare the voltage.It has the characteristics of high accuracy,strong timeliness,simple operation,and practical reliability.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

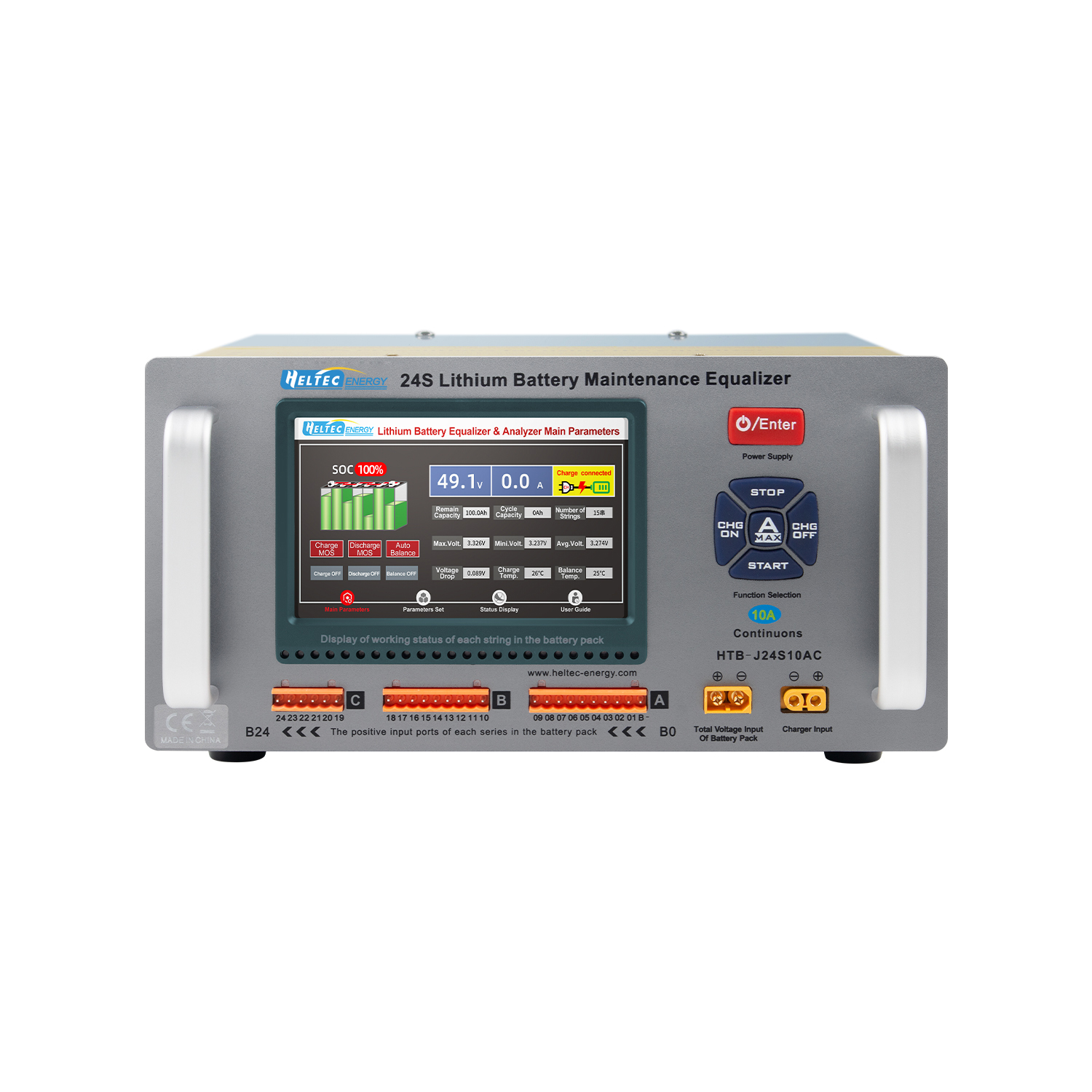

HTB-J24S10AC Lithium Battery Maintenance Equalizer

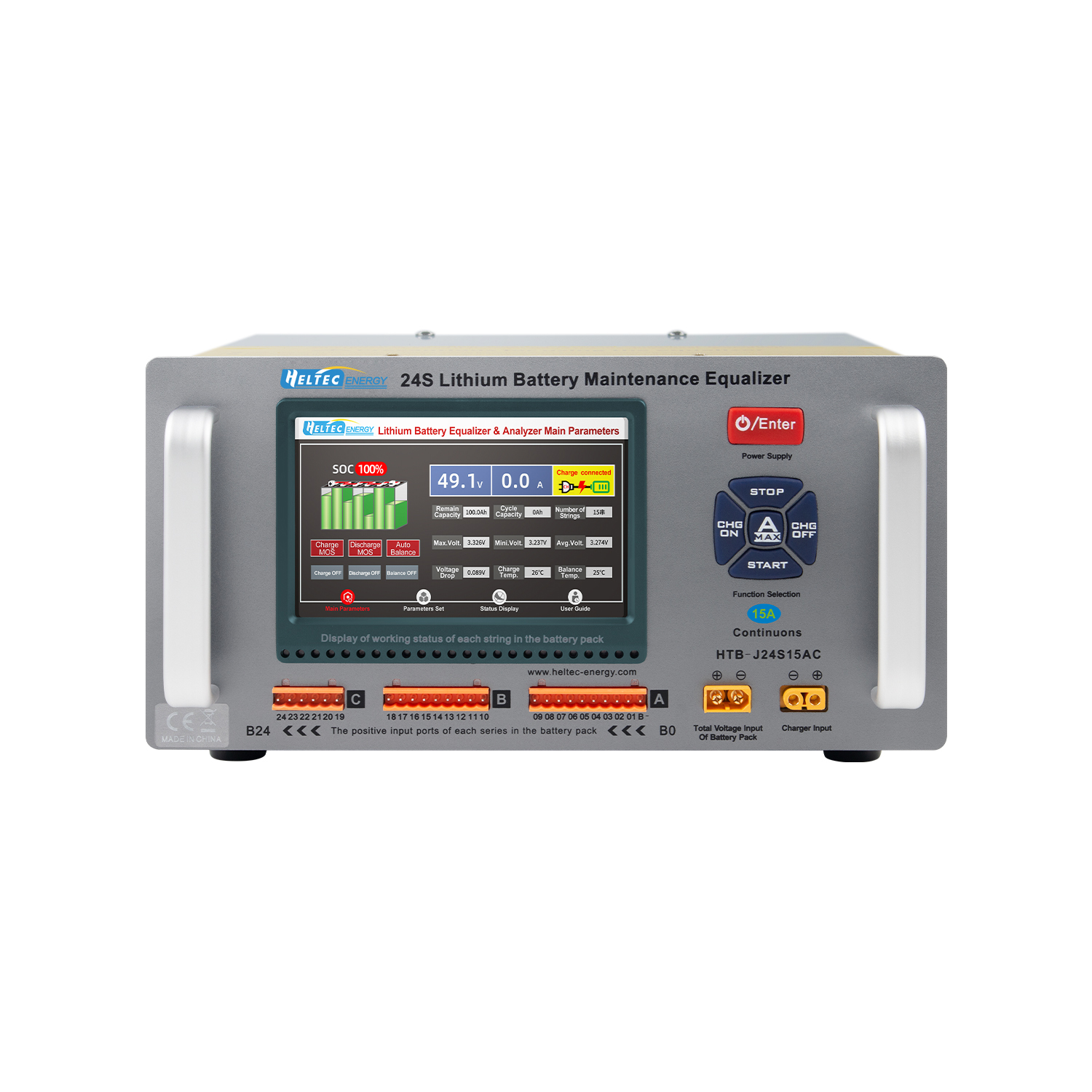

HTB-J24S15AC Lithium Battery Maintenance Equalizer

(For more specifications, please contact us. )

Production Model	HTB-J24S10AC	HTB-J24S15AC

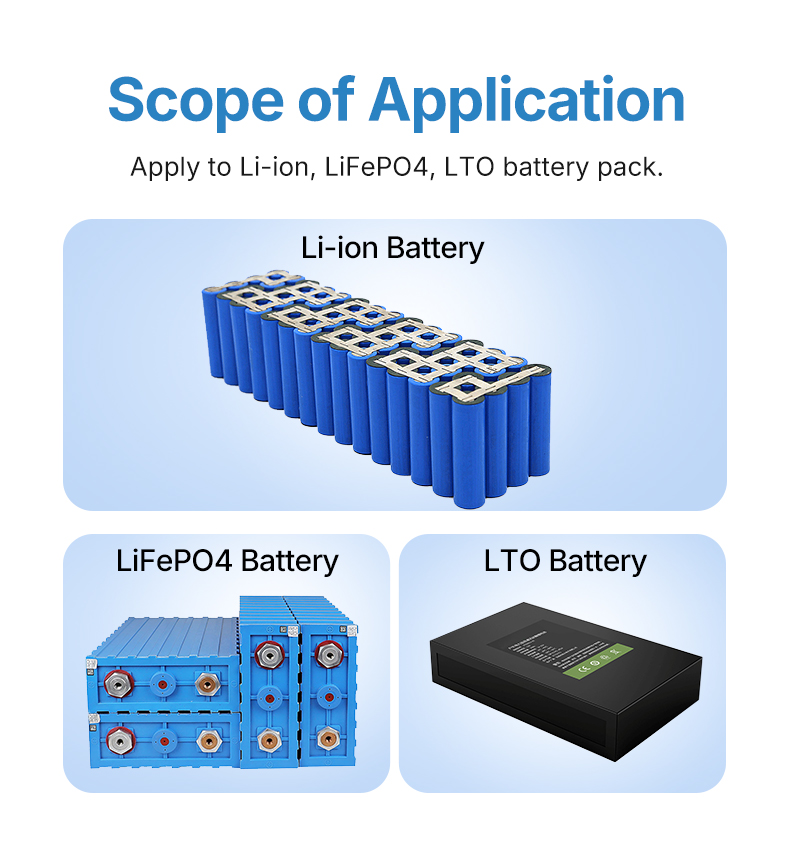

Applicable Battery Type	Li-ion/LiFepo4/LTO
Be apply battery pack strings (Discharge mode)	2-24S	2-24S

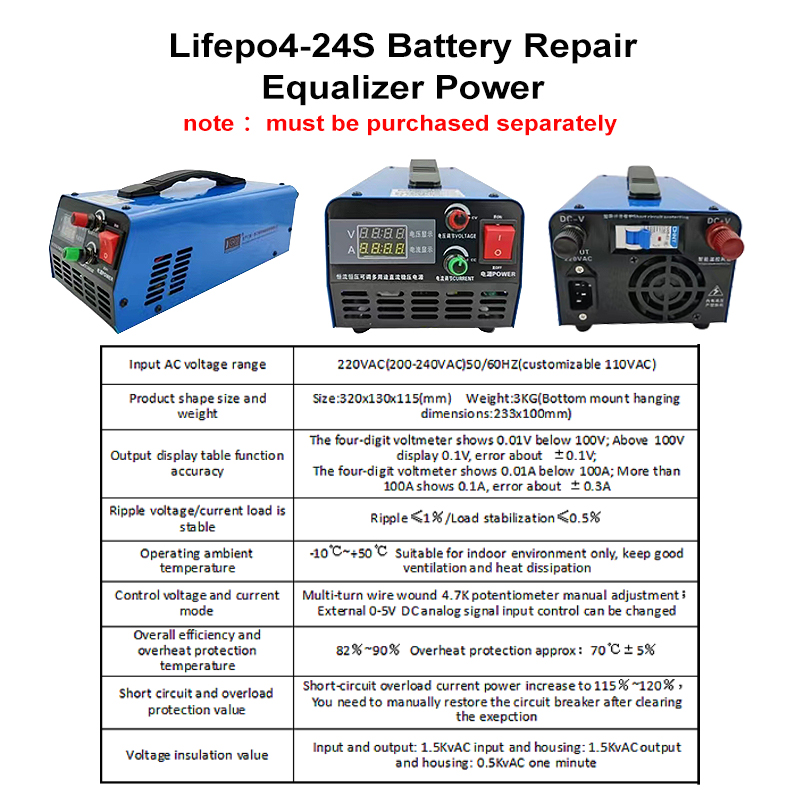

Be apply battery pack strings (Charge mode)	10-24S	10-24S
Maximum equalized current	10A(MAX)	15A(MAX)
Equilibrium Pressure difference accuracy	±0.001V	±0.001V

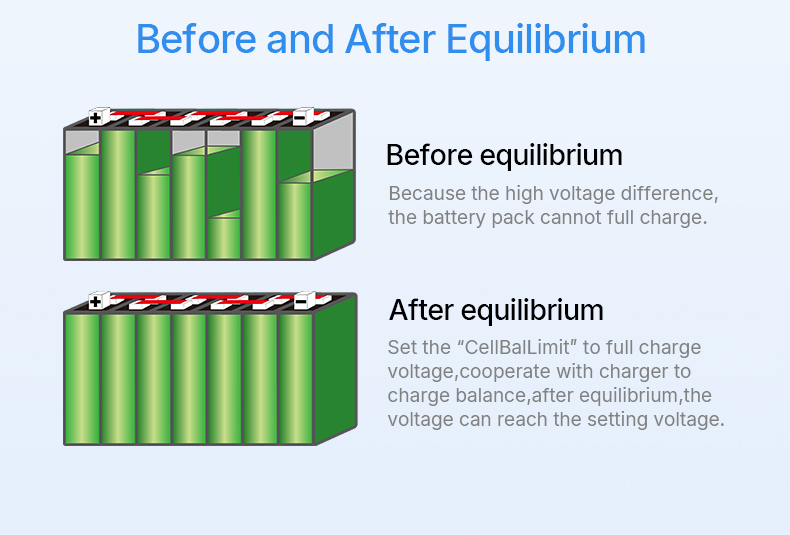

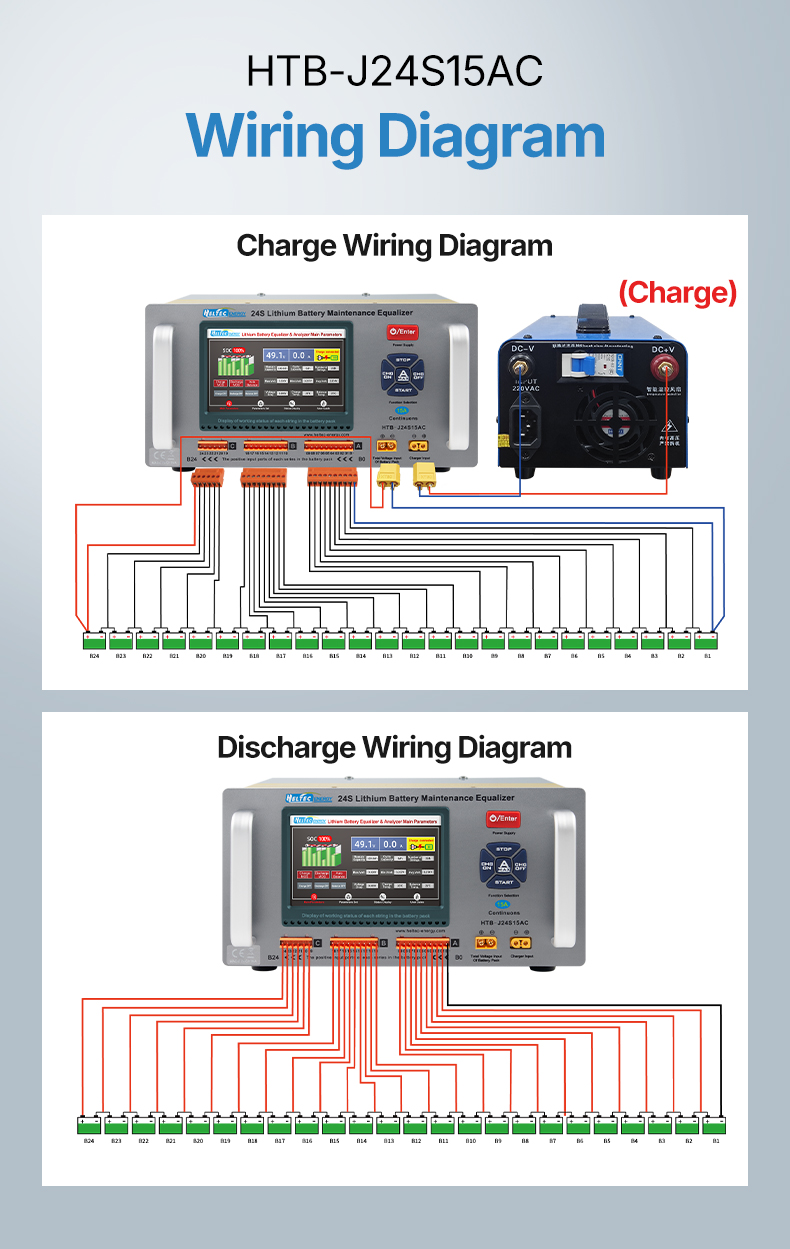

Equalization Mode	Charge Equalization/Discharge equalization
Discharge Mode	Pulse Discharge/Continuous discharge
Applicable Capacity	Above 50Ah	Above 100Ah

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (1)

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (2)

Product Information

Brand Name:	Heltec Energy
Origin:	Mainland China
Warranty:	One year
MOQ:	1 pc
Voltage of power supply	AC110V-220V
Application	Li-ion/LifePO4/LTO
Battery pack strings	2-24S
Minimum balanced voltage	1mv
Maximum balanced current	10A/15A(Optional)
Start charge equalization strings/voltage	More than 10strings/30V
Product size	275X242X140mm

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (16)

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (17)

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (15)

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. Lithium Battery Maintenance Equalizer *1 set

2. Power Cord

3. Balance Connection Cable

4. Battery Connector

5. Line Sequence Test Board

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (12)

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (4)

Applications

Widely used to detect and analyze the voltage of multiple strings of batteries in various research institutions,lithium battery distributors,battery pack manufacturers,and battery protection system production units,as well as to repair the power battery pack for electric vehicles and power tools,etc.

24S-Lithium-Battery-Maintenance-Equalizer-Battery-Equalization-Balancing-Unit (10)

Features

①The machine can automatically collect and analyze the voltage of each string of lithium battery packs,while monitoring the changes in voltage of each string of battery packs during the equalization process.

②The main control chip is an intelligent MCU chip,which can automatic analysis the battery,control the battery to charge and discharge,and then start the equalization work.

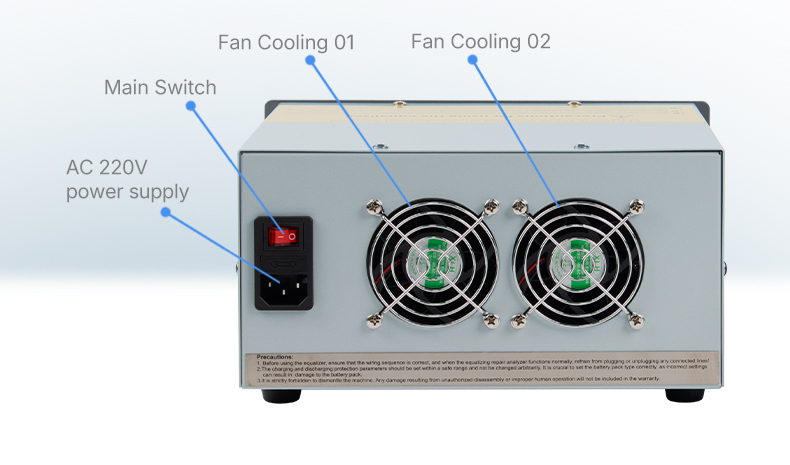

③The internal component layout is reasonable and equipped with a heat dissipation and cooling system,which can effectively avoid the impact of high temperature environment on electronic components.

④The equalization current is adjustable,with a maximum value of 15A. And the machine can accurately equalize repair of different types of battery packs.

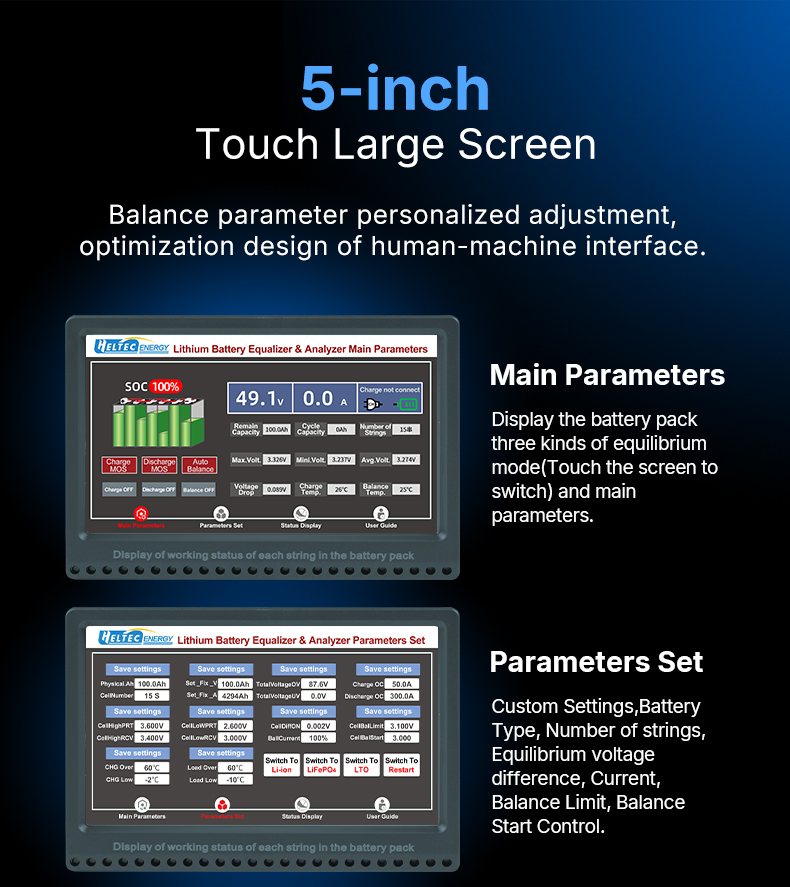

⑤Multiple parameters can be set to adapt to different types of battery packs for personalizely equalize setting.

⑥Simulate testing in various environments and equipped with a more comprehensive security protection setting system.

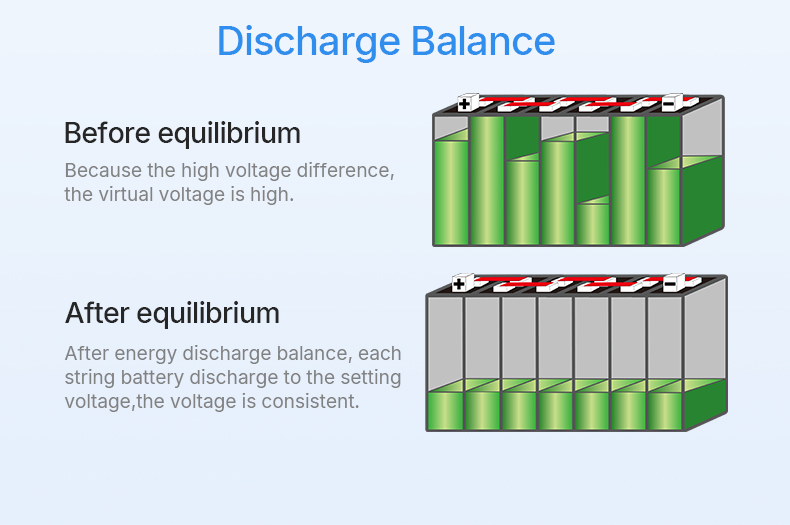

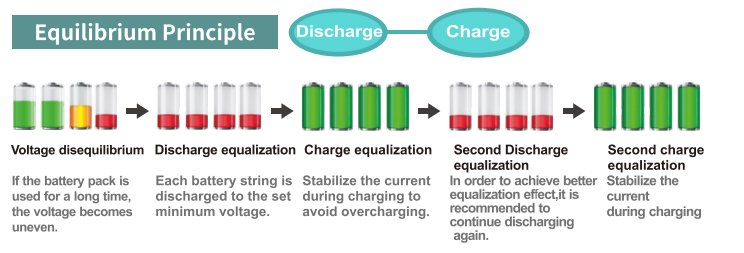

⑦Discharge equalization:Based on the aging degree and equalization demand of the battery pack,users can choose to switch between continuous discharge equalization mode or pulse discharge equalization mode.
