Multi Functional Li lon/LiFePO4 Battery Charger With Intelligent Voltage Matching System And Multiple Safety Protections, Used For AC 110v/220v Charging

HTCH series lithium battery pack intelligent charger is a safe charging solution designed for Li-ion /LifePO4 battery modules. It is a professional lithium battery charging device that integrates intelligent matching, safety protection and eﬃcient charging. Through intelligent voltage digital control adjustment technology and multiple safety protection systems, the potential safety hazards of overcharging and short circuit caused by incorrect parameter settings in traditional chargers are completely resolved, providing dual protection for battery life and user safety. Protecting safety with technological innovation, so that every battery can be charged and used with peace of mind.

For more information, send us inquiry and get your free quote today!

Send email to us Online Store

Product Detail

Product Tags

Specifications:

Model	Charging voltage	Charging current	Charging power
HTCH125V20A	3.6V-125V	110V:1-10A 220V:1-20A	110V:1.25KW 220V:2.50KW
HTCH125V30A	3.6V-125V	110V:1-10A 220V:1-30A	110V:1.25KW 220V:2.80KW
HTCH60V30A	3.6V-60V	110V:1-10A 220V:1-30A	110V:1.8KW 220V:1.8KW

(For more specifications, please contact us. )

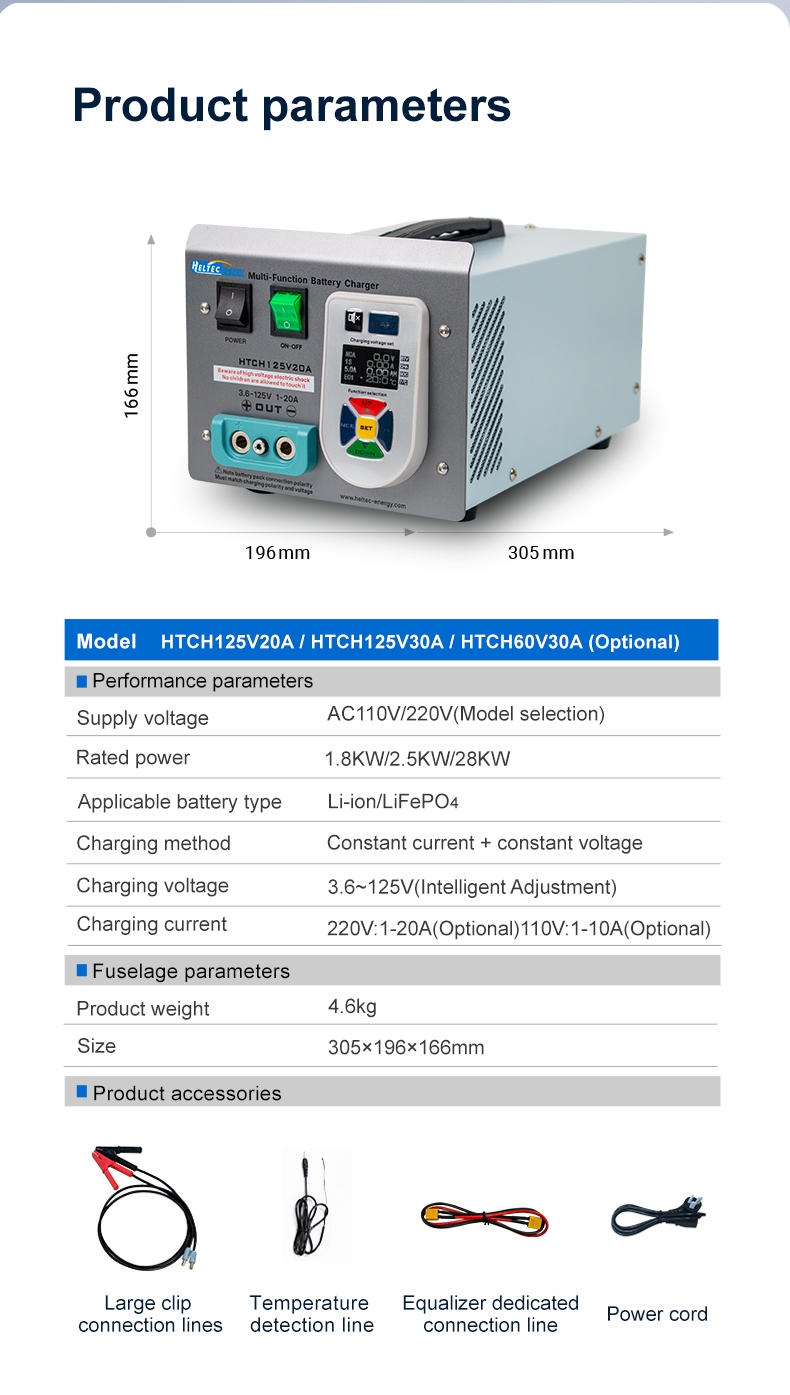

Product Information

Product Name	Lithium battery pack intelligent CNC charger
Model	HTCH125V20A
Supply voltage	AC110V/220V(Model selection)
Rated power	1.2KW/2.4KW
Applicable battery type	Li-ion/LifePO
Charging method	Constant current + constant voltage
Charging voltage	3.6~125V (Intelligent Adjustment)
Charging current	220V:1-20A(Adjustable) 110V:1-10A(Adjustable)
Weight	4.6(kg)
Size	305196166(mm)

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. Main Machine*1 Set

2. Large Clip For Connecting Cable

3. Power Cord

4. XT-60 Cnnection Line

5. Temperature Sensing Line

6. Instruction Manual

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil/Spain
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Applications

It is suitable for major scientiﬁc research institutions, lithium battery dealers, battery pack manufacturers and battery protection system manufacturers to charge and power replenishment activation batteries, etc.Maintenance business of power battery packs such as new energy vehicles and energy storage systems.

Features

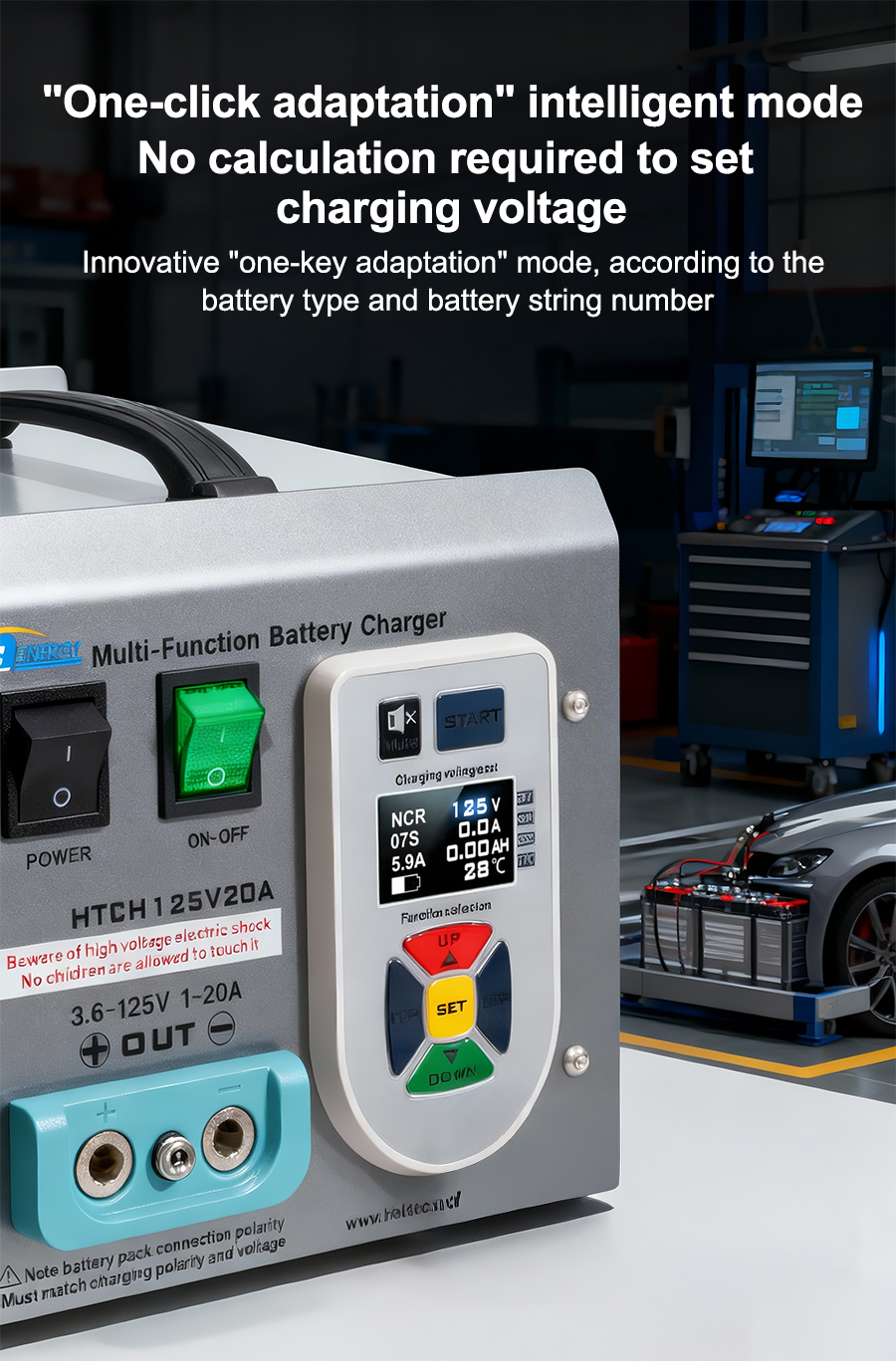

1. Intelligent voltage matching system, the ﬁrst "one-key adaptation" mode: automatically identify and accurately set the charging voltage according to the battery type and number of battery strings.

2. Support custom mode: professional users can manually adjust parameters to meet the needs of special scenarios.

3. Triple temperature control protection, real-time monitoring of battery and device temperature, automatic current reduction or power oﬀ when abnormal temperature rises.

4. The internal components are reasonably arranged and combined with the heat dissipation cooling system, the impact of high temperature environment on electronic components can be eﬀectively avoided.

5. Anti-reverse connection/anti-wrong connection protection to avoid short circuit risk.

6. Overcharge/overcurrent/overvoltage protection triple current protection, AI algorithm dynamically adjusts the charging curve to ensure that the entire charging process is within the safety threshold.

7. The maximum output current is 20A, suitable for multiple scenarios such as medium and large energy storage systems, power tools, and new energy vehicle battery modules.

8. Intelligent charging strategy reduces battery loss and increases cycle life by more than 20%.

Wiring Precautions

1 . According to the “positive” and “negative” poles on the wiring harness corresponding to the “positive” and “negative” poles of the charger output port, ensure the wiring is correct.
