The rapid expansion of clean energy applications across portable devices, light electric vehicles, and stationary energy storage systems has intensified the need for rigorous battery assessment. Battery manufacturers, downstream repair shops, and energy storage maintenance professionals frequently encounter a common technical challenge: how to select an appropriate testing unit from a crowded marketplace that matches specific cell chemistries and series configurations. Selecting the incorrect instrumentation can lead to inaccurate capacity valuations, insufficient diagnostics, or prolonged testing cycles. This guide details a structured approach to evaluation, utilizing the advanced testing and balancing technology developed by Chengdu Heltec Energy Technology Co., Ltd., to clarify the selection process. Utilizing a reliable battery tester during initial quality control and routine maintenance ensures long-term operational efficiency and system safety.
Understanding Core Testing Parameters and Technical Requirements
Selecting suitable diagnostic instrumentation requires an accurate definition of the target battery architecture and the necessary technical parameters since a single testing profile cannot fit every application. Technicians must first confirm the specific chemical architecture of the battery pack, as lithium iron phosphate (LiFePO4) and ternary lithium (NMC) chemistries exhibit distinct nominal voltages, charge/discharge curves, and safety thresholds that demand highly adaptable voltage detection algorithms to prevent overcharging or deep discharging during automated test cycles.
Furthermore, understanding the precise voltage and current thresholds is essential, spanning from single-cell evaluation requiring precise low-voltage calibration to multi-cell series arrangements demanding substantial total voltage capacity and sufficient discharge current limits to simulate actual operational loads. Finally, the scope of integrated diagnostic functions must be evaluated, balancing basic needs like standard capacity calibration via controlled discharge against sophisticated maintenance demands including direct internal resistance measurement, multi-cycle automated aging tests, and active cell balancing to address voltage discrepancies within a single unit.
Matching Equipment Form Factors to Operational Scenarios
To address these diverse technical requirements, Heltec Energy has engineered a versatile matrix of specialized testing and maintenance instruments. These solutions are categorized by their intended operational environments and performance profiles to simplify procurement decisions.
1. Low-Voltage Quality Control and Cell Laboratory Research

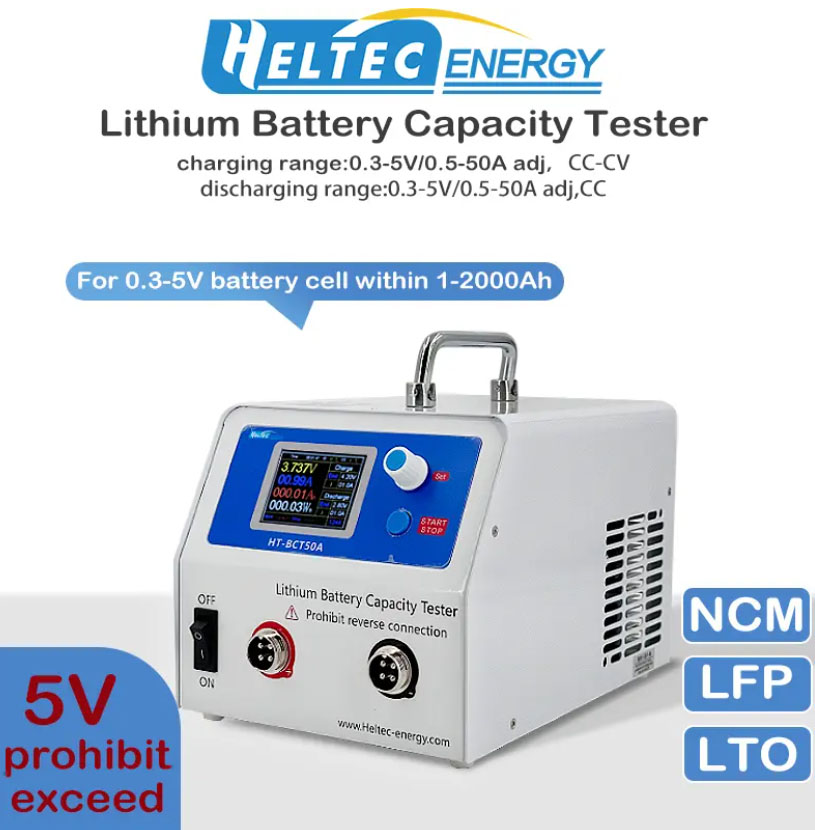

For low-voltage single cells or small-scale laboratory prototyping, the HT-BCT50A and HT-BCT10A30V models offer precise multi-mode cycling capabilities. The HT-BCT50A operates within a 0.3–5V range and supports programmable currents from 0.3–50A, making it highly effective for checking single lithium or lead-acid cells during incoming quality control. For small multi-cell assemblies, the HT-BCT10A30V extends the voltage spectrum up to 30V with a 0.5–10A current range. These units support automated, multi-step charge, discharge, and relaxation sequences to deliver detailed degradation profiles without requiring manual supervision.
2. Medium-Scale Battery Pack Capacity Assessment

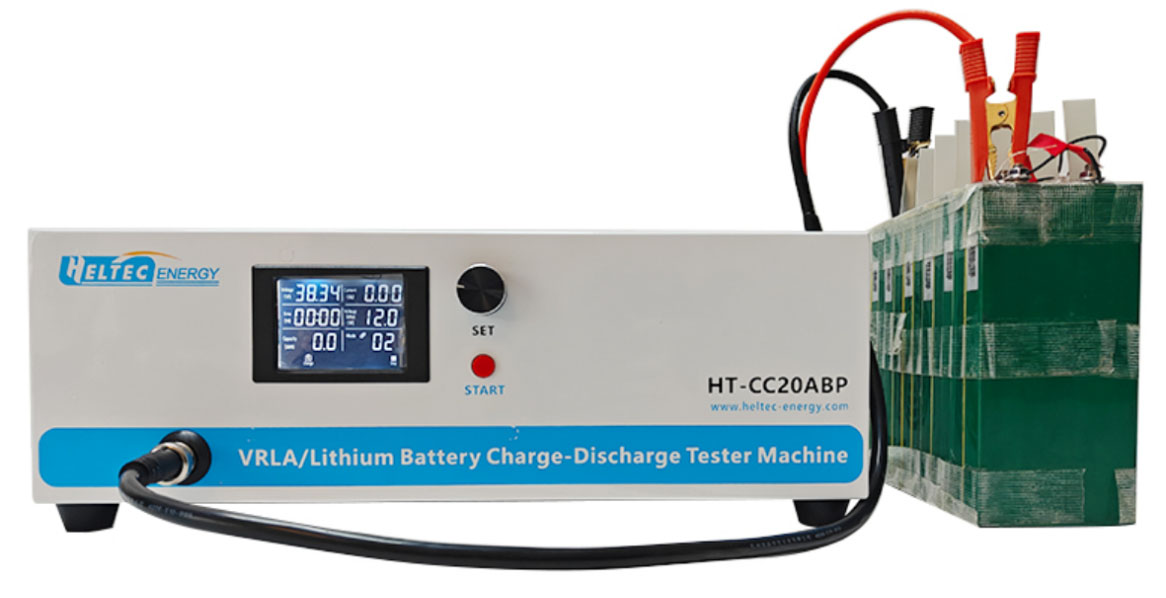

Service workshops and battery assembly facilities handling medium-sized industrial packs require robust equipment capable of sustained power output. The HT-CC20ABP and HT-CC40ABP capacity testers operate reliably across a wide 9–99V window. These units feature voltage and current stepping increments of 0.1V and 0.1A, allowing technicians to program precise testing conditions. Real-time diagnostic data is displayed via built-in LCD screens, giving workshop operators immediate visibility into actual versus rated capacities without relying on complex, external software setups.
3. High-Throughput Parallel Batch Testing
Manufacturing operations and large-scale recycling centers require high-throughput testing systems to maintain productivity. Specialized four-channel charge and discharge testers provide standalone operational isolation for each channel, operating within a 0.3–5V and 0.3–50A envelope per circuit. When larger single cells or high-capacity parallel blocks require testing, these independent channels can be connected in parallel to deliver up to 200A of continuous current. This modularity ensures high uptime; a single localized fault will not interrupt the remaining active test channels.
4. Comprehensive Diagnostics and Active Maintenance Testing
Advanced battery service operations often encounter complex pack degradation where simple capacity verification is insufficient. Multifunctional balancing testers operating between 7–23V combine a 6A charging and 10A discharging infrastructure with clear channel-specific data visualization. For highly sophisticated, high-density configurations, the HT-CJ32S25A lithium battery analysis and balancing tester integrates a high-performance Microchip MCU. This system supports configurations up to 32 series cells, achieving a voltage sampling accuracy within 1 millivolt. Equipped with integrated Wi-Fi app monitoring and active maintenance capabilities, it allows operators to perform capacity diagnostics and execute high-precision active balancing corrections simultaneously.
Application-Driven Selection Recommendations
Selecting the right diagnostic tool is easier when matching the equipment's primary functions to the specific requirements of the work environment.
● Cell Manufacturers and Laboratory Facilities: Research and production lines require strict accuracy, automated cycling, and precise data logging. The HT-BCT series provides the required measurement precision to evaluate small design variations and verify incoming cell batches.
● Repair Services and Custom Modification Shops: Technical workshops require versatile equipment capable of handling diverse voltage profiles and correcting cell imbalances. A combination of the HT-CC series for bulk capacity verification alongside the HT-CJ32S25A for detailed cell-by-cell balancing helps technicians restore pack uniformity efficiently.
● Second-Life Sorting and Energy Storage Maintenance: Large-scale energy storage providers and battery recyclers require multi-channel configurations or high-series management capabilities to screen large quantities of decommissioned cells quickly, facilitating efficient second-life sorting.
Advancing Battery System Reliability
Effective power management depends on accurate data and reliable testing processes. As industrial, automotive, and residential power requirements grow more complex, maintaining battery pack consistency becomes essential for operational safety and cost efficiency. Chengdu Heltec Energy Technology Co., Ltd. addresses these challenges by offering a scalable equipment portfolio that ranges from single-cell laboratory testers to intelligent 32S active balancing maintenance systems. By selecting diagnostic equipment based on specific chemical profiles, physical configurations, and operational workflows, technical teams can optimize their maintenance routines, reduce diagnostic errors, and extend the service life of complex battery systems.
For detailed equipment specifications, custom OEM/ODM configurations, or to request a direct technical quotation based on specific voltage and series requirements, visit the official corporate portal at https://www.heltec-energy.com/.
