Why does a lithium-ion battery pack with a nominal capacity of 100Ah sometimes deliver only 70Ah of actual energy during operation? The underlying cause of this capacity shortfall is rarely a catastrophic structural failure; instead, it is almost always driven by internal voltage imbalances among individual cells. Much like the shortest stave in a wooden barrel dictates the total volume of water it can hold, the weakest cell in a series arrangement determines the usable capacity of the entire battery pack. When the voltage differential between cells exceeds 30mV, standard passive balancing mechanisms integrated into standard Battery Management Systems (BMS) lack the current capacity to correct the variance. Under these conditions, a specialized battery equalizer becomes the best tool to fix battery cell imbalance. To address this exact operational challenge, Chengdu Heltec Energy Technology Co., Ltd. delivers advanced balancing technologies and maintenance instruments designed to target and correct misaligned cells, unlock restricted capacity, and restore the battery pack to its engineered performance levels.
The Operational Limitations of Passive Balancing in Maintenance and Repair
Standard passive balancing systems function by dissipating excess energy from higher-voltage cells as heat through shunt resistors. While this design is sufficient for maintaining healthy, tightly matched cells during standard operation, it proves inadequate when the voltage differential exceeds 50mV or when older cells are mixed with new ones during a partial pack rebuild. Passive balancing operates at very low currents, typically between 30mA and 100mA, meaning that resolving a significant capacity divergence in high-capacity packs could take days, if not weeks.
To address these severe imbalances, professional maintenance environments utilize dedicated maintenance-grade instruments rather than relying on standard internal hardware. Chengdu Heltec Energy Technology Co., Ltd. addresses this industry challenge by engineering heavy-duty battery equalizer instruments that combine precise voltage measurement, internal resistance diagnosis, and high-current energy transfer. Instead of wasting energy as heat, these maintenance equalizers extract energy from the highest-voltage cells and redistribute it directly to the lowest-voltage cells, correcting severe cell divergence within a realistic operational timeframe.
Technical Specifications and Engineering Architecture
The precision of specialized repair hardware depends directly on the control architecture and measurement resolution of the system. Heltec Energy constructs its diagnostic and maintenance instruments using high-speed, large-scale microcontroller units (MCUs) sourced from Microchip Technology Inc. These processors enable real-time voltage detection across individual cells with a measurement range of 1V to 5V per cell and an accuracy rating of ±1mV. The internal control system automatically identifies the configuration of connected battery packs, supporting configurations from 2S up to 24S, with specific advanced models extending capabilities up to 32S. This multi-chemistry architecture allows a single instrument to service Lithium Nickel Manganese Cobalt Oxide (NCM), Lithium Iron Phosphate (LFP), and Lithium Titanate (LTO) chemistries without requiring manual structural recalibration.

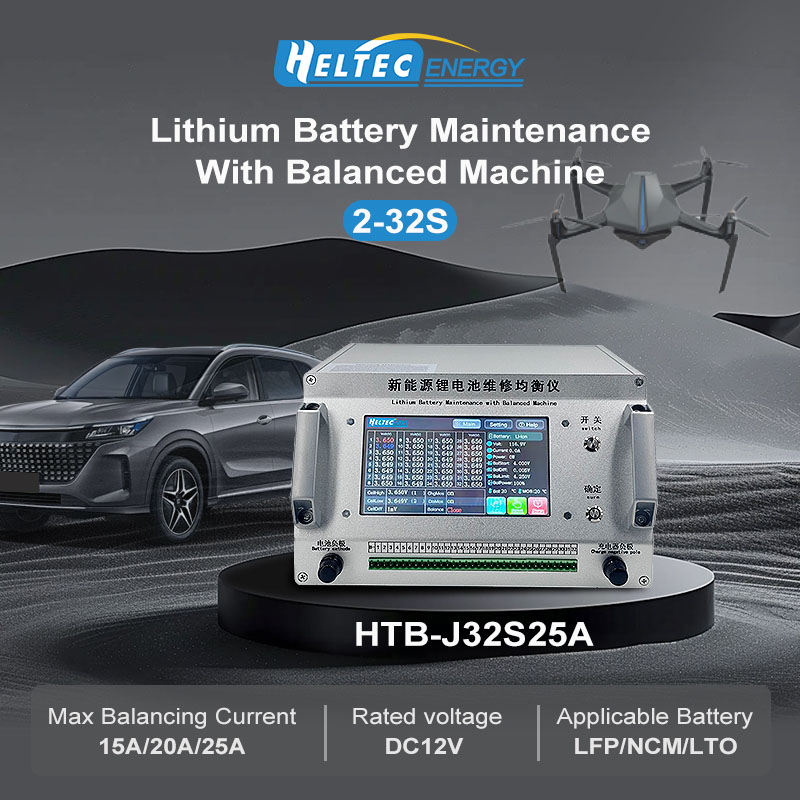

The core therapeutic function of the equipment relies on an energy-transfer balancing methodology that delivers a continuous equalization current of up to 15A or 25A depending on the specific model architecture. Unlike basic active balance boards whose current output drops as the cell voltages converge, Heltec Energy instruments maintain a stable, high-current transfer that operates independently of the voltage gap. Technicians can select from three operational modes via the interface: manual equalization, automatic equalization, or charge-assisted equalization. The physical construction incorporates a patented control panel that adjusts between 0 and 45 degrees to match standing or sitting workstations, a 7-inch full-color touch interface, and a dedicated physical emergency stop button.
For safety during high-amperage energy transfers, the circuitry includes single-cell overvoltage protection alongside real-time hardware warnings for reverse polarity, total pack overvoltage, undervoltage conditions, and internal metal-oxide-semiconductor field-effect transistor (MOSFET) thermal overruns. High-tier configurations, such as the HT-CJ32S25A model, also incorporate onboard liquid-crystal displays (LCD) to show individual string voltages, cumulative pack voltage, active balancing current, and internal temperatures alongside integrated Wi-Fi app connectivity for remote data logging.
Application Scenarios in Modern Battery Remanufacturing and Repair
The deployment of high-current maintenance instrumentation is categorized across three distinct market segments, each presenting unique pack architectures and operational demands:
1. Micro-Mobility and Personal Transport
Light electric vehicles, such as electric scooters, personal mobility vehicles, and golf carts, typically utilize compact, dense battery configurations. When these vehicles experience range degradation, portable capacity testers and active equalizers are deployed on-site. The instrument targets small-capacity modules, isolating high-resistance cells and balancing the pack within field repair environments without requiring the shipping of the complete pack to a centralized facility.
2. Commercial Fleet Vehicles and Passenger EVs
Fleet operators, shared-car services, and automotive repair workshops deal with high-voltage, large-capacity battery modules. For these applications, benchtop charge/discharge testers are paired with modular active balancing systems. Technicians run full capacity validation cycles, applying deep calibration routines to correct cell-to-cell variance caused by the uneven thermal environments found within vehicle undercarriages.
3. Industrial Power Supplies and Grid-Scale Energy Storage
Residential energy storage setups, telecommunications base stations, and solar power facilities rely on large, multi-channel battery arrays. Imbalances in these installations can degrade the financial return on investment for renewable energy systems. Multi-channel maintenance systems are used to perform cyclic cell activation and high-current balancing across large-capacity packs, restoring system consistency and stabilizing industrial backup power infrastructures.
Performance Optimization and Life Extension
By integrating diagnostic testing with active energy redistribution, specialized balancing tools change how battery health is managed in professional workshops. Correcting cell voltage alignment down to a 1mV tolerance directly prevents individual cells from reaching their lower or upper voltage cut-off thresholds prematurely. This balancing optimization helps logistics providers, repair infrastructure networks, and manufacturing facilities recover lost pack capacity, lower total warranty expenditures, and ensure the ongoing stability of energy storage systems. Selecting the correct balancing setup based on specific cell chemistries and series configurations allows operators to preserve hardware assets and maximize the operational lifespan of industrial lithium battery packs.
To explore technical specifications, browse the full equipment catalog, or submit a technical inquiry, visit the official corporate portal at https://www.heltec-energy.com/.
