Modern industrial and commercial applications increasingly rely on complex lithium-ion and lead-acid energy configurations to power operations. A common misconception in energy storage engineering is that a high-capacity battery pack functions merely as a simple series-connected string of individual cells. In practice, electrochemical cells naturally exhibit subtle variances in internal resistance, self-discharge rates, and operational capacities due to manufacturing tolerances and localized thermal gradients. To mitigate these discrepancies, industrial operators utilize specialized power management equipment engineered by Heltec Energy a leading developer of cell equalization systems. Over multiple charge and discharge cycles, minor individual cell differences amplify, triggering a phenomenon known as the "barrel effect," where the weakest cell dictates the overall usable capacity and limits the performance of the entire assembly. While standard safety systems monitor these configurations, a specialized battery equalizer serves as a critical maintenance and performance-optimization component designed to eliminate these internal variances, ensuring long-term operational efficiency.
The Distinct Roles of Balancing Modules and Battery Management Systems
To optimize large-scale power arrays, it is essential to distinguish the specific operational boundaries of a standard Battery Management System (BMS) from those of a dedicated balancing module. A conventional BMS functions primarily as a safety and protective mechanism, monitoring parameters such as over-charge, over-discharge, over-current, and short-circuit conditions to prevent catastrophic failure. However, the internal balancing capabilities of most standard BMS units are passive, relying on small resistors to bleed off excess energy as heat, usually limited to low currents of 30 to 50 milliamperes.
In contrast, an external balancing module acts as a highly targeted, performance-enhancing co-processor that works alongside the protective BMS. Instead of replacing the safety system, the dedicated balancer focuses exclusively on neutralizing voltage discrepancies across series-connected cells. By continuously transferring energy from higher-voltage cells to lower-voltage cells, the module maintains uniform state-of-charge levels across the entire pack. This active management prevents individual cells from prematurely reaching lower voltage cut-off thresholds, thereby unlocking energy that would otherwise remain inaccessible due to localized cell degradation.
Operational Mechanisms and Performance Verification of Active Equalization
Advanced maintenance technology, such as the specialized equipment developed by Chengdu Heltec Energy Technology Co., Ltd., utilizes high-efficiency active energy transfer to address cell inconsistency. Rather than wasting excess power as thermal energy, advanced active equalizers employ microcontrollers paired with capacitive or inductive energy-transfer architectures to reallocate charge dynamically throughout the pack.
Analysis of the proprietary balancing systems from Heltec Energy highlights several precise technical mechanisms that contribute to verifiable pack rehabilitation:
● High-Precision Monitoring: The integration of high-speed Microchip microcontrollers enables real-time voltage acquisition with a sampling accuracy of 1 millivolt across a broad 1V to 5V measurement range. This precise resolution allows the system to detect micro-volt deviations before they escalate into significant performance bottlenecks.

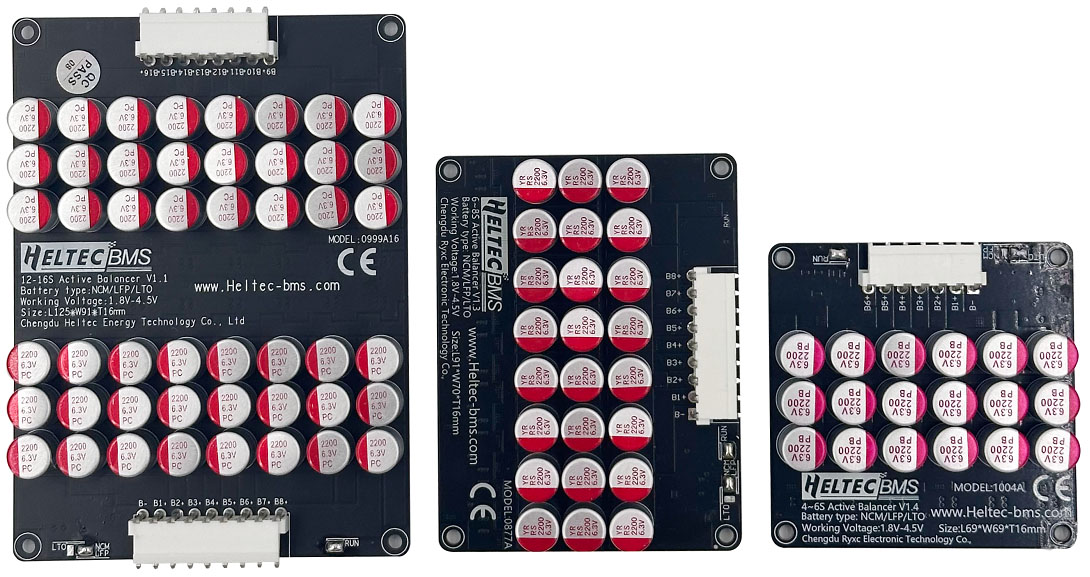

● Non-Dissipative Energy Transfer: By utilizing advanced dynamic inductive or capacitive circuits, these systems facilitate continuous equalization currents reaching up to 15 amperes on specific models. Crucially, this mechanism operates independently of adjacent cell positioning, meaning energy can be transferred efficiently from the first cell to the last cell in a long series string without localized thermal accumulation.
● Versatile Chemistry and Structural Compatibility: Modern balancing instruments provide native support for complex topologies ranging from 2S to 24S or even 32S configurations. This versatility ensures seamless compatibility across multiple chemical profiles, including Lithium Nickel Manganese Cobalt Oxide (NCM), Lithium Iron Phosphate (LFP), and Lithium Titanate (LTO).

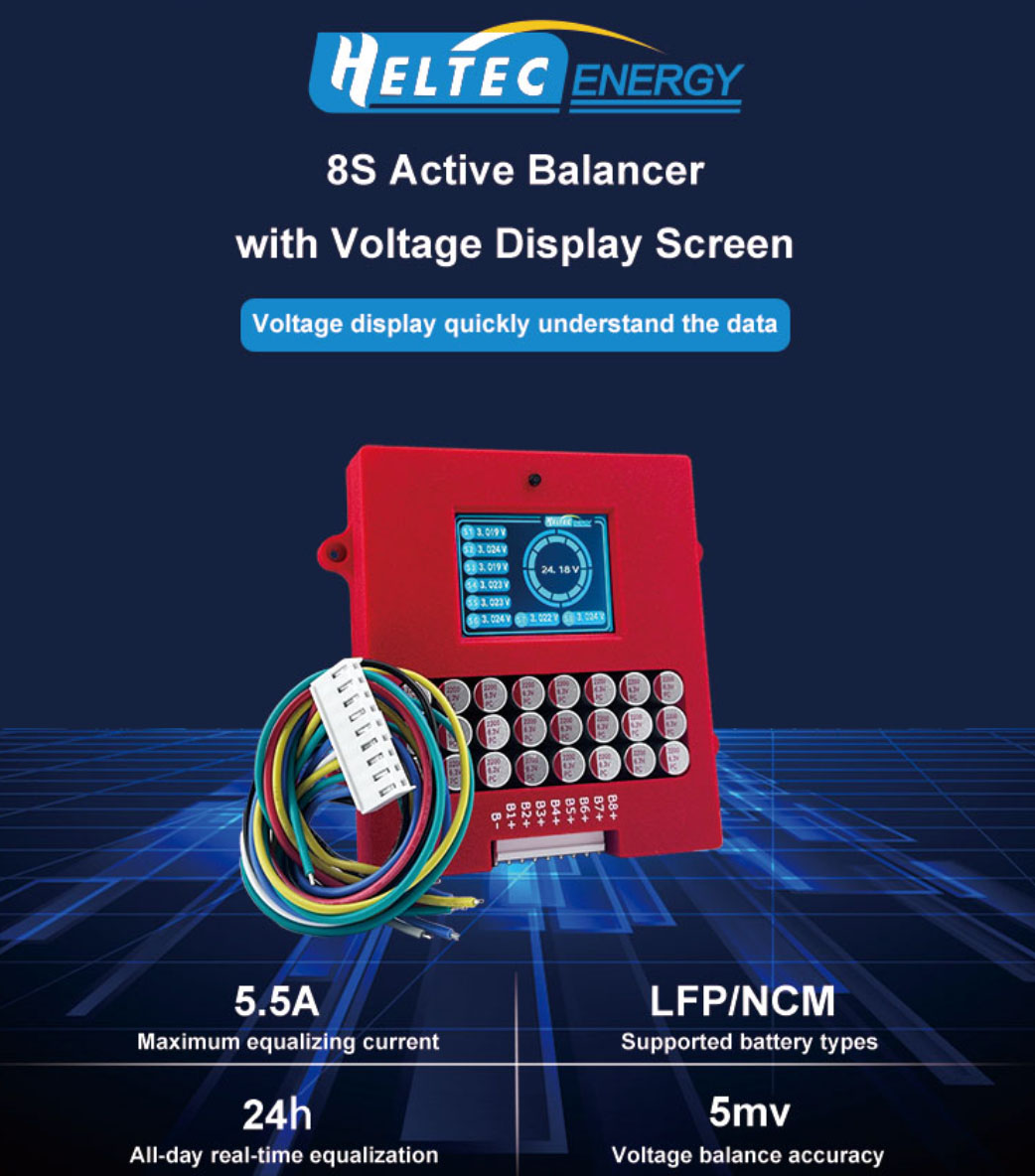

● Multi-Mode Operation and Safety Features: Advanced models feature selectable automated, manual, or charge-specific equalization modes, complemented by automatic shut-off and audible alarms upon task completion. Physical durability is enhanced via specialized protective conformal coatings that shield internal circuits from moisture, dust, and chemical corrosion, while integrated LCD screens and wireless application interfaces enable remote diagnostic tracking.
Implementing targeted equalization directly mitigates the structural degradation of the pack. Eliminating voltage imbalances normalizes the state of charge across all cells, effectively recovering capacity locked away by premature voltage cut-offs. This directly increases the depth of discharge, curtails internal resistance divergence, and slows down cyclic capacity fade, thereby extending the overall operational lifespan of the industrial asset.
Deployment Timelines Based on Electrochemical Degradation Phases
Determining the optimal timeline for integrating a dedicated battery balancer depends largely on the specific operational phase and environmental stress factors of the energy system. In newly assembled battery packs operating over short, low-stress operational cycles, internal cell variances are typically minimal, allowing the primary system to manage stability temporarily without immediate external intervention.
However, field data compiled by Chengdu Heltec Energy Technology Co., Ltd. indicates that integration becomes highly recommended after approximately six months of continuous service, or when measured individual cell discrepancies exceed 30 millivolts. Remediation becomes particularly urgent in heavy-duty applications such as deep-cycle stationary energy storage networks, heavy industrial power supplies, and electric transport fleets. Furthermore, when maintenance procedures require mixing new cells with older, mismatched components, passive balancing frameworks fail to process the substantial voltage differentials. In these high-demand scenarios, active equalization prevents rapid localized thermal degradation and premature pack retirement.
Conclusion
Dedicated balancing modules serve as essential infrastructure for maximizing consistency, safety, and operational longevity in industrial battery installations. By actively mitigating the cell discrepancies that lead to early capacity loss, these systems protect significant capital investments in power technology. Selecting the appropriate active equalization hardware requires matching the specific series configuration and underlying chemistry of the battery pack with targeted maintenance tools. For comprehensive technical specifications, structural engineering details, and product inquiries regarding specialized power management solutions, visit the official resource portal at https://www.heltec-energy.com/.
