In technical diagnostics, identifying the exact remaining life and operational boundaries of a battery pack presents a distinct challenge. Traditional service environments frequently rely on quick voltage measurements to estimate remaining energy. However, surface voltage often masks deep-seated cell degradation, leading to premature pack replacement or undetected system failures. Accurate analysis requires instrumentation that evaluates cells under precise, programmable load conditions. To address these industry-wide calibration needs, Chengdu Heltec Energy Technology Co., Ltd. (Heltec Energy) has developed a specialized portfolio of diagnostic hardware designed to transition workshops and production lines from static estimation to dynamic validation.
Precision Programmable Charge-Discharge Technology
Evaluating complex chemistries, such as Lithium Iron Phosphate or Ternary Lithium, requires meticulous control over operational variables. A standard battery capacity tester must do more than record a final number; it must chart the complete behavioral profile of a cell under load.
The HT-BCT series by Heltec Energy establishes precise operational parameters for deep-data analytics. These programmable instruments deliver an accuracy threshold of ±0.1% for both voltage and current measurements, ensuring that fine variations in internal resistance or capacity are visible during quality control inspections. The system supports full automation across multiple diagnostic phases, including constant current charging, constant voltage charging, structured rest intervals, and regulated discharging.

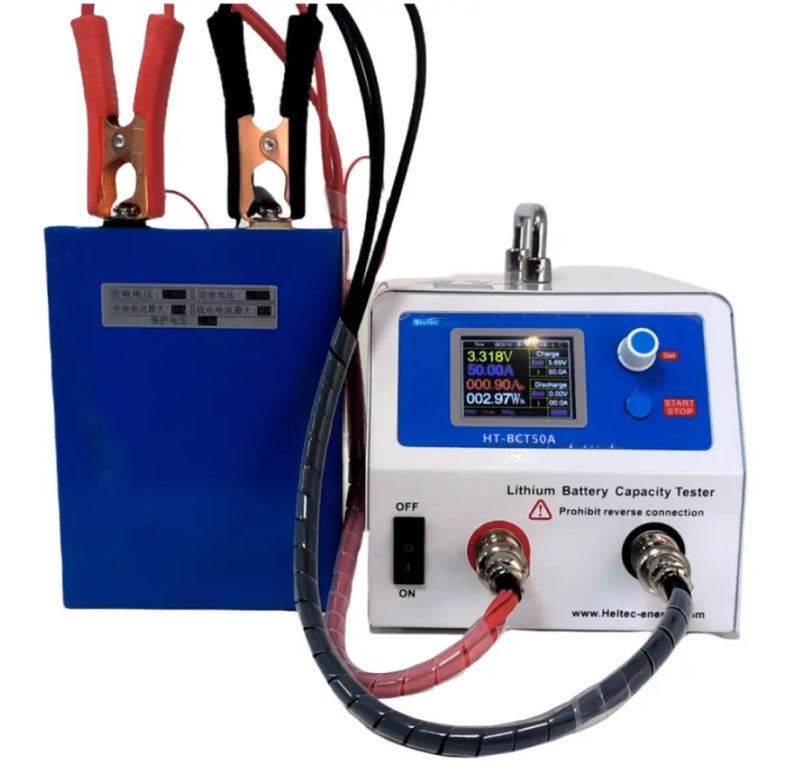

For small-scale evaluation and research laboratories, the HT-BCT50A provides a dedicated operating range from 0.3V to 5V with an adjustable current of 0.3A to 50A. When industrial applications require the verification of larger sub-assemblies, the HT-BCT10A30V expands testing capabilities to handle modules ranging from 1V to 30V. By establishing USB connectivity with dedicated host software, engineering teams can plot comprehensive charge-discharge curves rather than relying on isolated data points. This level of verification allows production facilities to perform rigorous batch grading and quality control checks with absolute certainty.
Isolated Multi-Channel Sub-Pack Testing
When processing multi-cell configurations, standard serialized testing protocols create significant operational bottlenecks. Technicians traditionally face a difficult choice: spend hours dismantling the copper busbars or accept generalized data from the entire pack. Chengdu Heltec Energy Technology Co., Ltd. addresses this limitation through isolated multi-channel diagnostic architectures.
The four-channel independent battery capacity tester optimizes throughput by allowing simultaneous cell diagnostic routines within an intact assembly. Each channel operates completely independent of the adjacent circuitry, supporting an adjustable range of 0.3V to 5V and a current delivery of 0.3A to 50A. For high-capacity industrial applications, the hardware configuration permits channel-paralleling, consolidating current capacity up to 200A to accommodate large-format cell structures.
This design eliminates the need to remove battery pack connectors during routine maintenance, protecting physical components from structural wear. Because multi-channel high-current operations generate substantial heat, safety engineering is embedded directly into the physical assembly. Integrated thermal sensors track system conditions, activating cooling fans when internal temperatures reach 40 degrees Celsius and triggering automatic shutdown protection if the hardware registers 83 degrees Celsius. Coupled with hardwired overvoltage and reverse-polarity protection, this framework safeguards both the operator and the customer asset.
High-Voltage Pack Diagnostics and Field Service Optimization
Field service environments, such as commercial energy storage installations and electric vehicle repair centers, demand direct pack-level assessment capabilities. Bringing complete, high-voltage battery enclosures back to a manufacturing plant for teardown diagnostics involves significant logistical costs and downtime. Portable, high-voltage diagnostic systems offer a practical alternative for local field support.
The HT-CC series and its associated high-voltage discharge instruments cater to mid- and high-voltage applications by supporting operational windows from 9V to 99V. To accommodate precise test profiles, the instrument utilizes a fine adjustment architecture allowing step increments of 0.1V for voltage and 0.1A for current. This granularity prevents accidental over-discharge during high-stress diagnostic cycles.
Operators can deploy three distinct intelligent evaluation modes: constant voltage discharge, timed discharge cycles, or targeted capacity benchmarks. During operation, a built-in liquid crystal display outputs real-time metrics including live voltage, active current, and cumulative discharged amp-hours. This direct display allows field technicians to confirm pack health instantly, making it well-suited for rapid troubleshooting on stationary industrial backup systems or electric mobility power supplies without requiring auxiliary computer connections.
Integrated Diagnosis and Active Balancing Repair
A common root cause of premature battery pack failure is localized cell divergence, where individual cells deviate in capacity and voltage over multiple usage cycles. Pure diagnostics can identify the weak cells, but addressing the root issue typically requires a separate maintenance process. Combining evaluation with cell correction streamlines the restoration workflow.

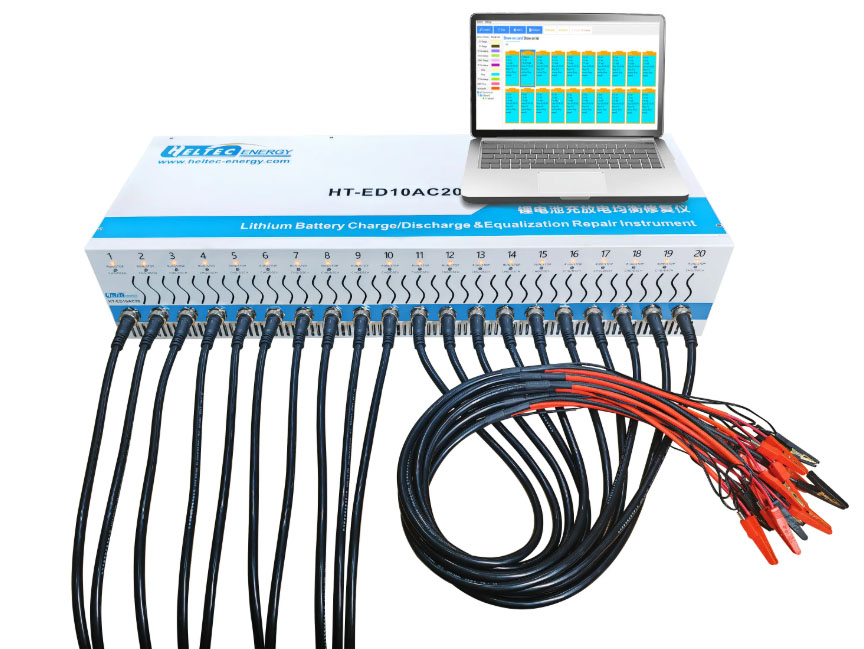

Heltec Energy merges these two functions through its combined battery capacity testing and equalization instrumentation, alongside the specialized HT-CJ series. While conducting a standardized capacity verification cycle, the device uses an active balancing module to reallocate energy across adjacent cells. Rather than discarding excess energy as heat via passive resistors, the active system moves energy from higher-voltage cells to lower-voltage units within the series.
This dual-action mechanism allows service centers to execute cell capacity certification and delta-voltage elimination during a single equipment connection. This process is highly valuable for restoring older packs found in electric golf carts, light electric vehicles, and small commercial energy storage enclosures. By realigning cell consistencies back to a uniform operating baseline, operators can recover usable capacity and extend the overall lifecycle of the pack, saving end users from the cost of full module replacements.
Balanced Diagnostic and Maintenance Workflows
As battery technology integrates deeper into modern industrial infrastructure, the engineering focus shifts toward long-term operational efficiency. Precision instruments that provide accurate performance data prevent unnecessary waste and help keep operational costs manageable.
The hardware developed by Chengdu Heltec Energy Technology Co., Ltd. spans from single-cell laboratory units to multi-channel systems and integrated field repair tools. These diagnostic assets furnish engineering teams, maintenance managers, and repair technicians with the specific metrics required to make informed service decisions. Selecting the correct instrument configuration requires matching the specific voltage ranges, current demands, and cell series counts of the target applications. Accurate diagnostic data helps maximize the return on energy storage investments and keeps power systems running reliably.
For detailed hardware specifications, custom layout requests, or equipment selection guidance, technical inquiries can be directed to the engineering team via the official portal at https://www.heltec-energy.com/.
