A common challenge encountered by operators of newly configured battery systems is an unexpected reduction in available capacity within six months of deployment. Systems frequently fail to reach a complete state of charge, leaving users questioning why individual series-connected units begin to exhibit disparate voltage levels. To address these operational concerns, Heltec Energy (Chengdu Heltec Energy Technology Co., Ltd.) provides a detailed technical analysis examining the underlying electrochemical and mechanical factors that drive cell deviation. Maintaining individual cell health requires a reliable cell balancer to mitigate these variances before they cause permanent degradation. This analysis explores how micro-level discrepancies manifest into system-level limitations and introduces structured methods developed by Heltec Energy to preserve structural integrity across diverse applications.
The Core Electrochemical and Operational Drivers of Cell Imbalance
The progression of cell imbalance is dictated by both intrinsic manufacturing variables and extrinsic operational environments. No two cells are completely identical upon leaving production lines; minor variations in initial capacity, internal resistance, and state of charge are present from the outset. As a battery pack undergoes continuous cycling, these microscopic manufacturing variances are progressively and systematically amplified.
Operational conditions further exacerbate these discrepancies, with localized temperature differentials serving as a primary driver. In typical pack layouts, cells situated near internal heat sources experience higher operating temperatures than those located at the periphery where heat dissipation is more efficient. This localized thermal gradient directly alters the self-discharge rate of each individual unit, causing those exposed to higher thermal loads to deplete their stored energy faster.
User interaction and operational habits also play a significant role. Systems subjected to frequent shallow charging and discharging cycles or prolonged periods of float charging do not allow conventional management hardware sufficient time to execute corrections. Over extended lifecycles, these factors culminate in uneven degradation, creating a classic battery barrel effect where the weakest cell prematurely triggers cutoffs and limits total usable pack capacity.
Advanced Maintenance Solutions and Targeted Technical Interventions
While cell imbalance is a natural physical progression, it can be actively suppressed, regulated, and repaired through advanced power electronics. To counteract these unavoidable deviations, Chengdu Heltec Energy Technology Co., Ltd. developed a specialized product lineup focused on active energy relocation rather than passive resistance dissipation:
1. Capacitive and Inductive Energy Transfer

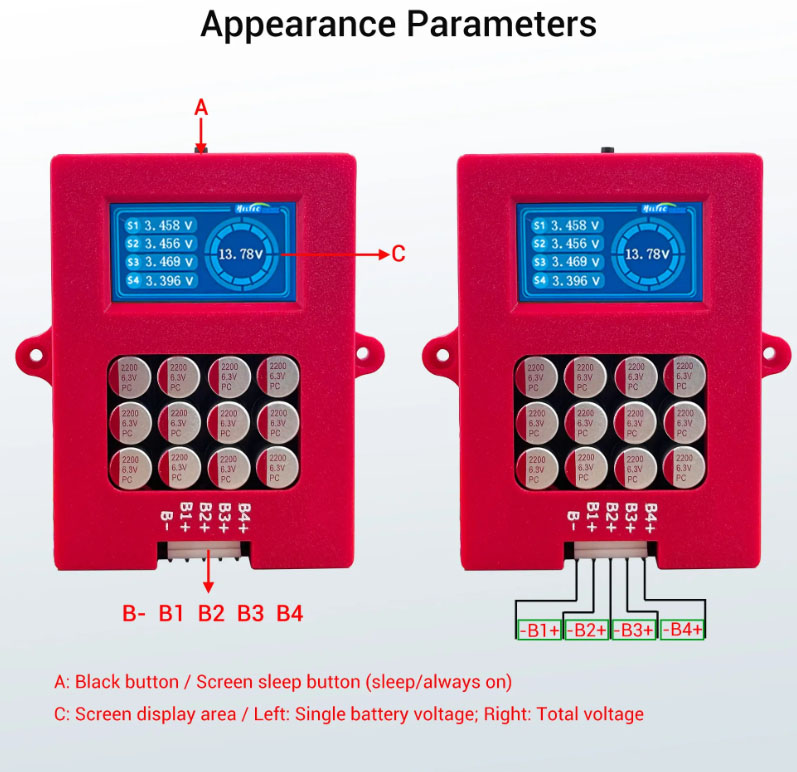

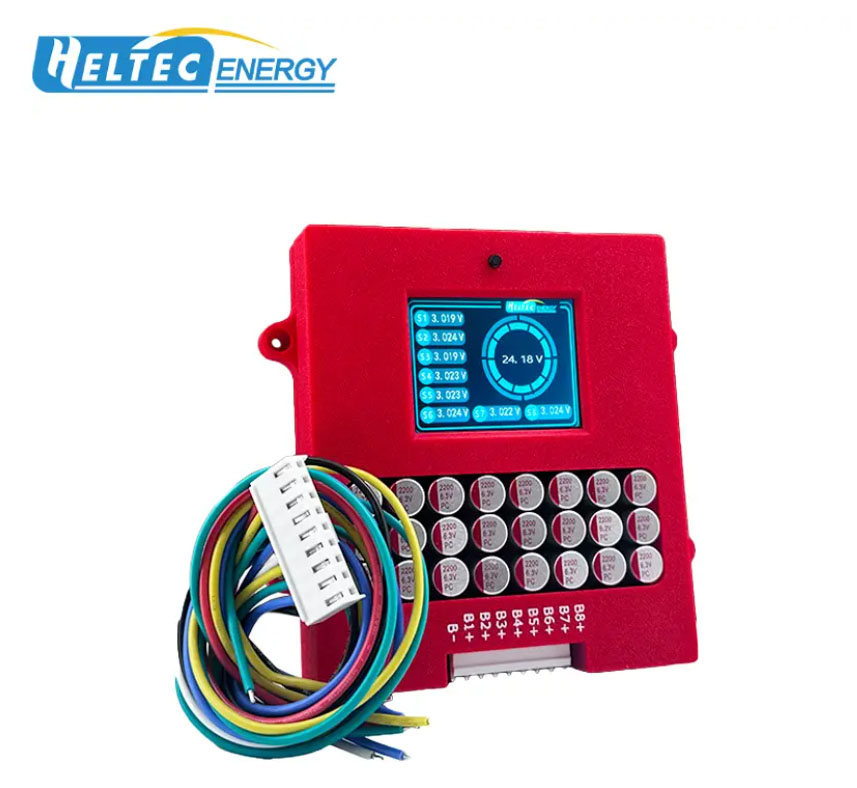

The Heltec Energy 5A Active Balancer utilizes advanced capacitive or inductive energy transfer mechanisms to achieve equilibrium across the entire battery assembly. Unlike traditional passive systems that generate substantial heat by wasting excess energy, this active architecture shifts charge from higher-voltage cells directly to lower-voltage cells. The balancing process initiates immediately upon system activation without requiring a voltage differential between adjacent cells, allowing for non-discriminatory group-wide balancing.
2. High Precision and Wide Compatibility
Engineered for ternary lithium and lithium iron phosphate configurations starting from 8S series architectures, this module operates with a real-time voltage display accuracy of plus or minus 5mV. The system is capable of reducing the minimum voltage difference down to approximately 0.01V, ensuring high consistency across all cells.
3. Comprehensive Hardware Protection
To maintain long-term operational reliability in demanding environments, the hardware incorporates over-discharge protection, a low-voltage automatic sleep mode to prevent deep depletion, and an advanced integrated thermal protection circuit. Additionally, the printed circuit board is treated with a specialized three-proof protective coating, providing essential insulation, moisture resistance, and dust-proofing for industrial installations.
4. System-Level Diagnostics and Calibration
For battery packs suffering from severe structural divergence or localized capacity degradation, localized active balancing modules alone may not suffice. In these scenarios, field technicians utilize a specialized Battery Analyzer Equalizer to perform comprehensive capacity calibration and multi-channel equalization repair. This industrial maintenance instrument allows for controlled charge and discharge testing alongside precise individual cell stabilization, effectively restoring capacity consistency and activating sluggish chemical components within degraded cells.
Preventative Best Practices for Sustained Performance
Mitigating voltage divergence requires a combination of automated hardware intervention and structured operational maintenance. Implementing specific routine practices can significantly slow down the rate of cell divergence:
● Scheduled Equalization Charging: Scheduled full equalization charging sequences allow active management hardware sufficient operational windows to correct minor capacity offsets before they compound.
● Optimal Storage Condition Management: Avoiding long-term storage of battery packs in a deeply discharged or completely depleted state reduces the risk of irreversible chemical stratification and localized copper dendritic formations.
● Precision Initial Cell Matching: Executing meticulous initial cell matching based on precise capacity and internal resistance mapping before assembling new battery packs establishes a stable baseline that delays the onset of the battery barrel effect.
When regular monitoring indicates that the voltage differential between individual cells exceeds 30mV during static or standard discharge states, immediate technical intervention using active equalization modules or professional repair analyzers is recommended to prevent accelerated degradation of the weakest cells.
Optimizing Battery Asset Lifecycle Management
In conclusion, cell imbalance represents an unavoidable physical phenomenon driven by complex electrochemical mechanisms and localized environmental operational factors. However, the integration of advanced active balancing systems alongside dedicated analytical maintenance instruments allows operators to actively suppress divergence and restore lost capacity. By addressing the root causes of voltage variation, Chengdu Heltec Energy Technology Co., Ltd. provides global industries, repair networks, and manufacturing facilities with the tools necessary to optimize cell uniformity, extend operational lifespans, and safeguard system safety. Selecting the correct balancing configuration based on series count and specific industrial application requirements ensures that battery installations continue to deliver reliable power throughout their full intended lifecycles.
