Battery Spot Welder Max 21KW Capacitor 18650 Battery Welding Machine

Heltec SW01 series spot welding machines are capacitor storage welding machines. They’re high power spot welders with max peak pulse power of 21KW. You can select the peak current from 2000A, 2500A to 3500A. It is easier for you to use the correct spot welding mode with the dual-mode function key on them. You can measure the connection on-resistance separately by precision micro-ohm resistance testing instrument. They can reduce labor intensity and improve efficiency with AT intelligent induction automatic trigger discharge. It’s easy for you to view the parameters with LED color screen on them.

Send email to us Online Store

Product Detail

Product Tags

Specifications

11.6KW 2000A (HT-SW01A/HT-SW01B)
12KW 2500A (HT-SW01D)
21KW 3500A (HT-SW01H)

Product Information

Brand Name:	HeltecBMS
Applicable Industries:	Machinery Repair Shops/Home Use/Retail/DIY
Origin:	Mainland China
Certification:	CE/WEEE
Warranty:	One year
MOQ:	1 pc
Usage:	Spot welding

Customization

Customized logo
Customized packaging
Graphic customization

Package

1. Battery welding machine *1 set (accessories available).
2. Anti-static bag, anti-static sponge and corrugated case.

Purchase Details

Shipping From:
1. Company/Factory in China
2. Warehouses in United States/Poland/Russia/Brazil
Contact Us to negotiate shipping details
Payment: TT is recommended
Returns & Refunds: Eligible for returns and refunds

Features

Capacitor storage
Low heat, not easy to burn
Pure nickel welding to LFP on Aluminum electrode
AT/MT welding mode
Parameters visual display

Model Selection

Model	Accessory	Picture	Power	Material & Thickness (MAX)	Function	Applicable Battery Type
HT-SW01A	1. 70A split spot welding pen		11.6KW	(1)Pure Nickel: 0.2mm (2)Nickelage: 0.3mm	Spot welding	Mobile phone battery, Polymer battery, 18650 battery

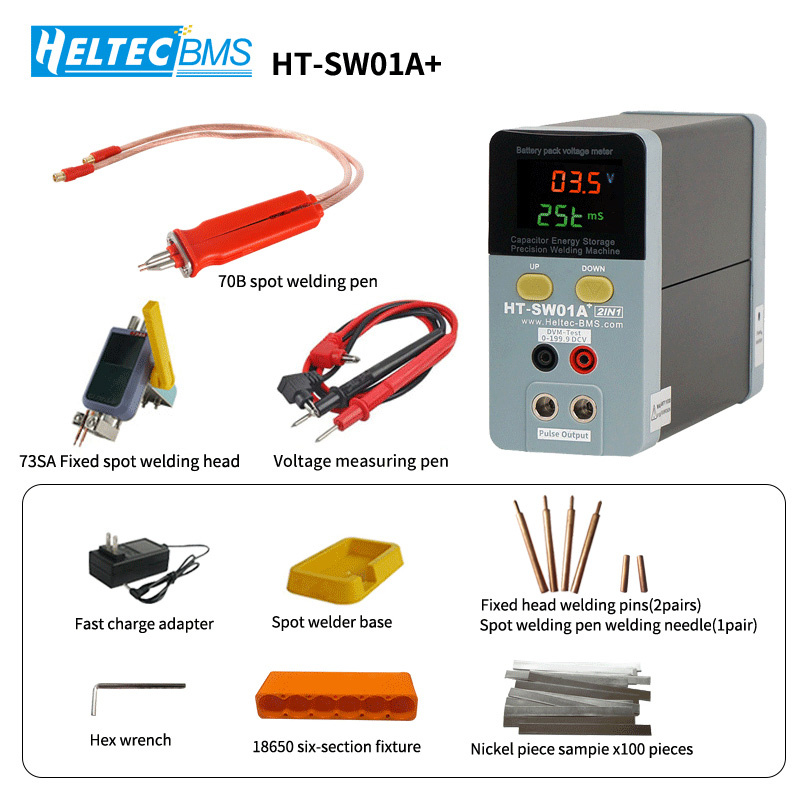

HT-SW01A+	1. 73SA fixed spot welding head 2. 70B spot welding pen 3. Voltage measuring pen		11.6KW	(1)Pure Nickel: 0.2mm (2)Nickelage: 0.3mm	1. Spot welding 2. Test Voltage 1-199V	18650, 21700, 26650, 32650 battery
HT-SW01B	1. 73SA fixed spot welding head 2. 70B spot welding pen		11.6KW	(1)Pure Nickel: 0.2mm (2)Nickelage: 0.3mm	Spot welding	18650, 21700, 26650, 32650 battery
HT-SW01D	1. 73SA fixed spot welding head 2. 73B spot welding pen		12KW	(1)Aluminium Nickel Composite Slice: 0.15mm (2)Pure Nickel: 0.3mm (3)Nickelage: 0.4mm	Spot welding	18650, 21700, 26650, 32650, Lithium iron phosphate battery
HT-SW01H	1. 73SA fixed spot welding head 2. 75A (252 mm) spot welding pen		21KW	(1)0.2mm pure nickel welding to aluminium (1)Aluminium Nickel Composite Slice: 0.2mm (2)Pure Nickel: 0.3mm (3)Nickelage: 0.4mm	Spot welding	18650, 21700, 26650, 32650, Lithium iron phosphate battery
HT-SW01H + 73B	1. 73SA fixed spot welding head 2. 75A (252 mm) spot welding pen 3. 73B spot welding pen		21KW	(1)Aluminium Nickel Composite Slice: 0.15mm (2)Pure Nickel: 0.3mm (3)Nickelage: 0.4mm	1. Spot welding 2. Soldering station	18650, 21700, 26650, 32650, Lithium iron phosphate battery

SW01 Series Performance Comparison

Model	HT-SW01A	HT-SW01A+	HT-SW01B	HT-SW01D	HT-SW01H
73SA Down Pressing Rocker Arm	×	√	√	√	√
Standard Welding Pen Model	70A Separate	70BN Integrated	70BN Integrated	73B Integrated	75A(25mm) Split
Pure Nickel Welding to LFP on Aluminum Electrode	×	×	×	×	√
Pure Nickel THK (Welding Pen)	≤0.2mm	≤0.25mm	≤0.25mm	≤0.3mm	≤0.4mm
Nickelage/Stainless Steel THK (Welding Pen)	≤0.25~0.3mm	≤0.3mm	≤0.3mm	≤0.4mm	≤0.5mm
Pulse Power (Peak)	11.6KW	11.6KW	11.6KW	12KW	21KW
Peak Current	2000A	2000A	2000A	2500A	3500A
Pulse Time (Max)	5ms	10ms	10ms	20ms	20ms
MT Pedal Precision Spot Welding	×	×	√	√	√
AT Auto Trigger Spot Welding	√	√	√	√	√
Voltage Test Function	×	√	×	×	×
Real Welding Current Display	×	×	√	√	√
Memory Function	×	×	×	√	√

* We keep upgrading products to meet requirements of our clients, please contact our sales person for more accurate details.

Note

HT-SW01H is designed for pure nickel welding to Aluminum, but you can still use it on 18650 battery -- Choose Package B with Integrated spot welding pen.

Instructions

Videos

Model	Youtube
HT-SW01H	https://youtu.be/qUCkyfYpQ3A
HT-SW01D	https://youtu.be/Y_C5ATFK1sU
HT-SW01B	https://youtu.be/PZwHI5sgkec
HT-SW01A	https://youtu.be/PQioC7Ny0Uo
HT-SW01A+	https://youtu.be/6gMbfi-Vgng
Spot Welding Pens	https://youtu.be/g6BXwh5JMII
